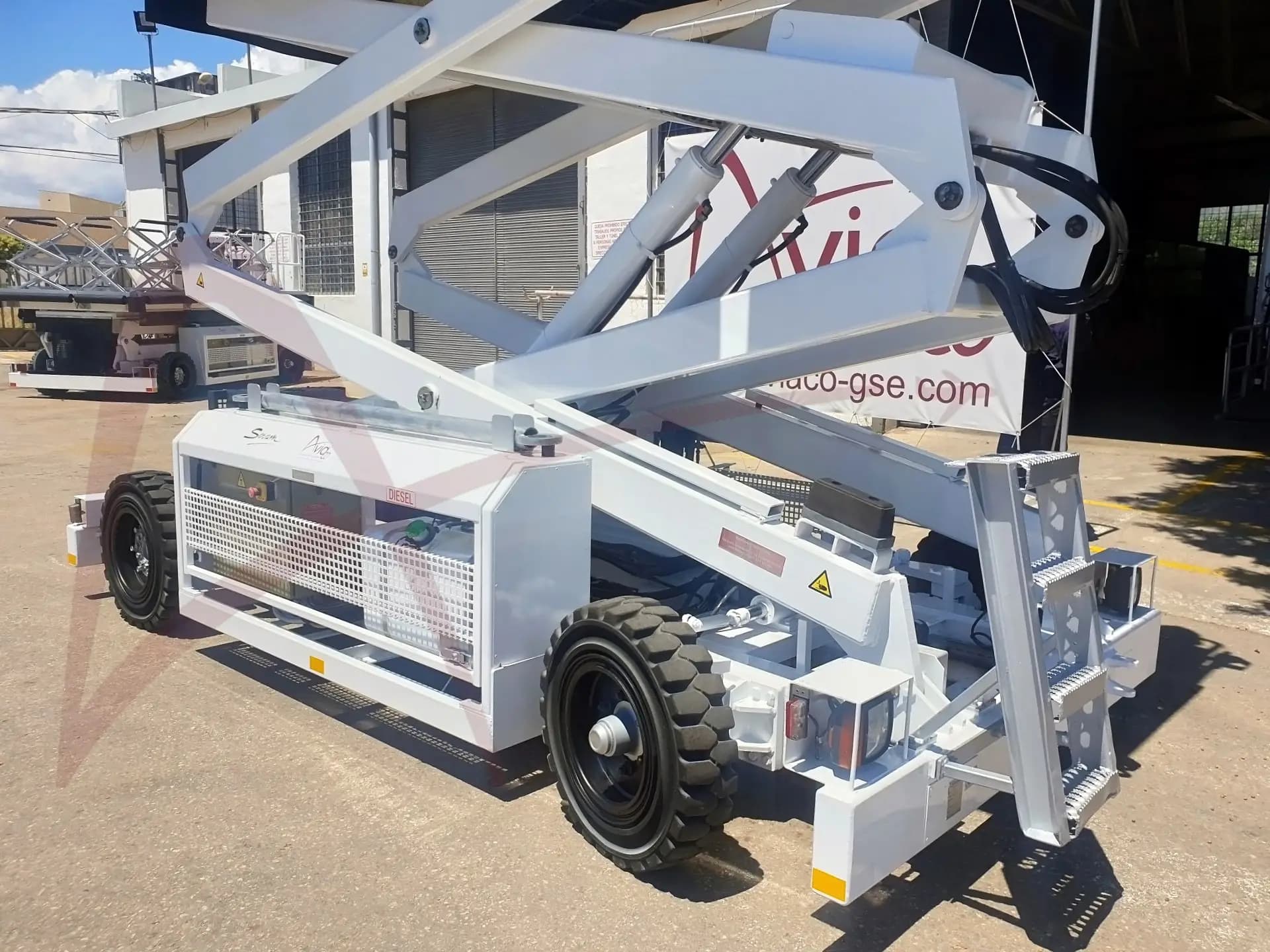

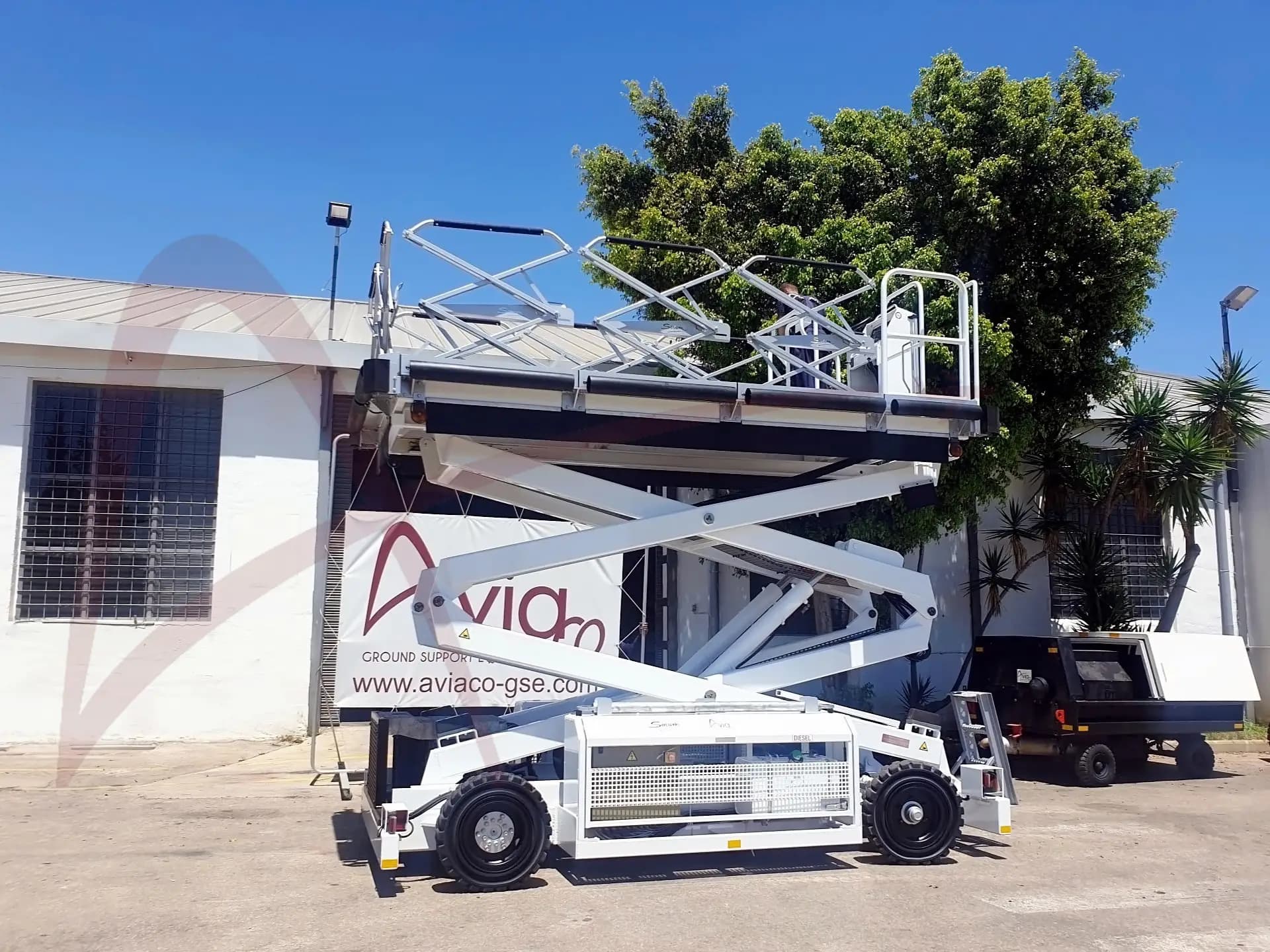

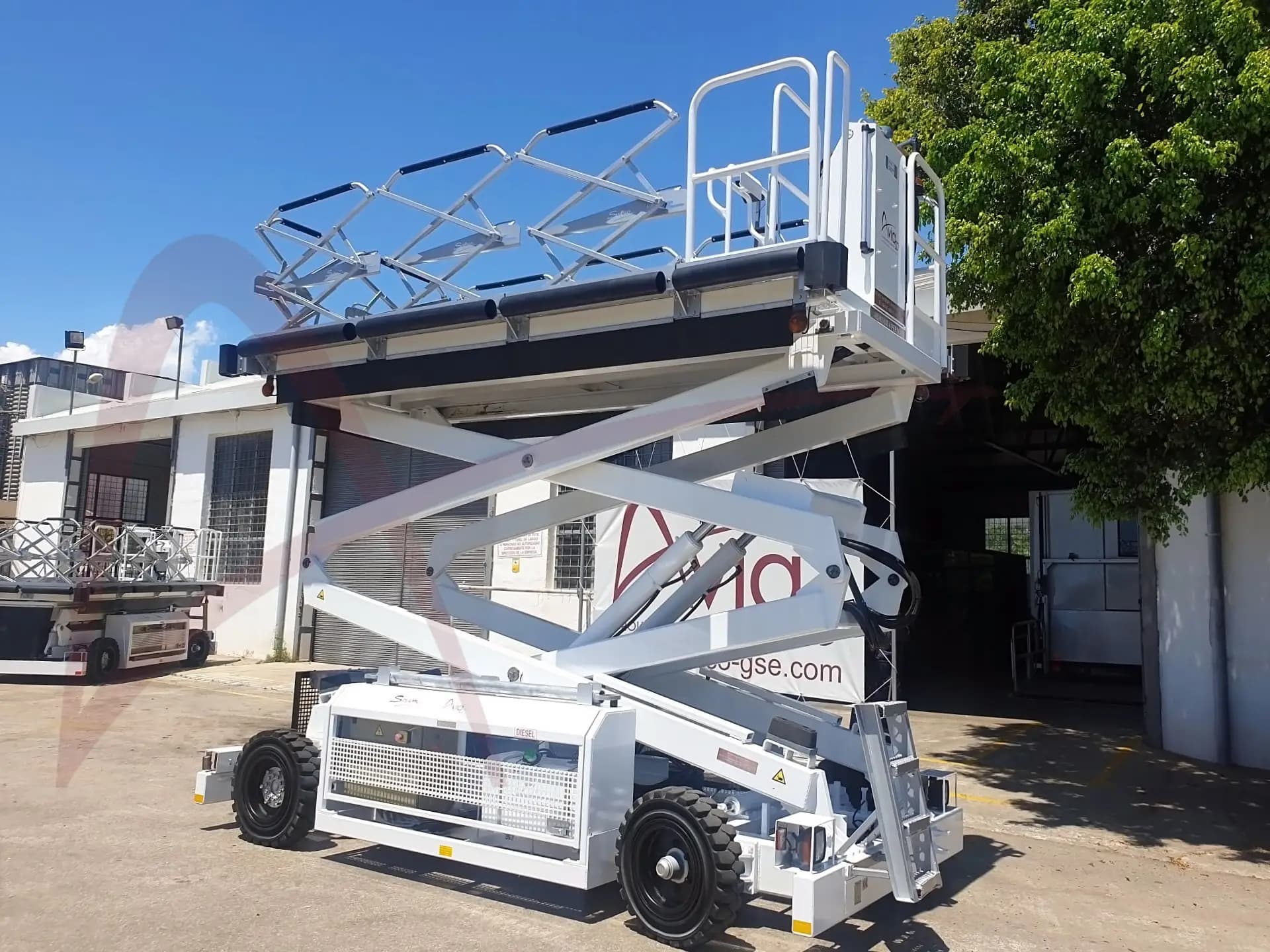

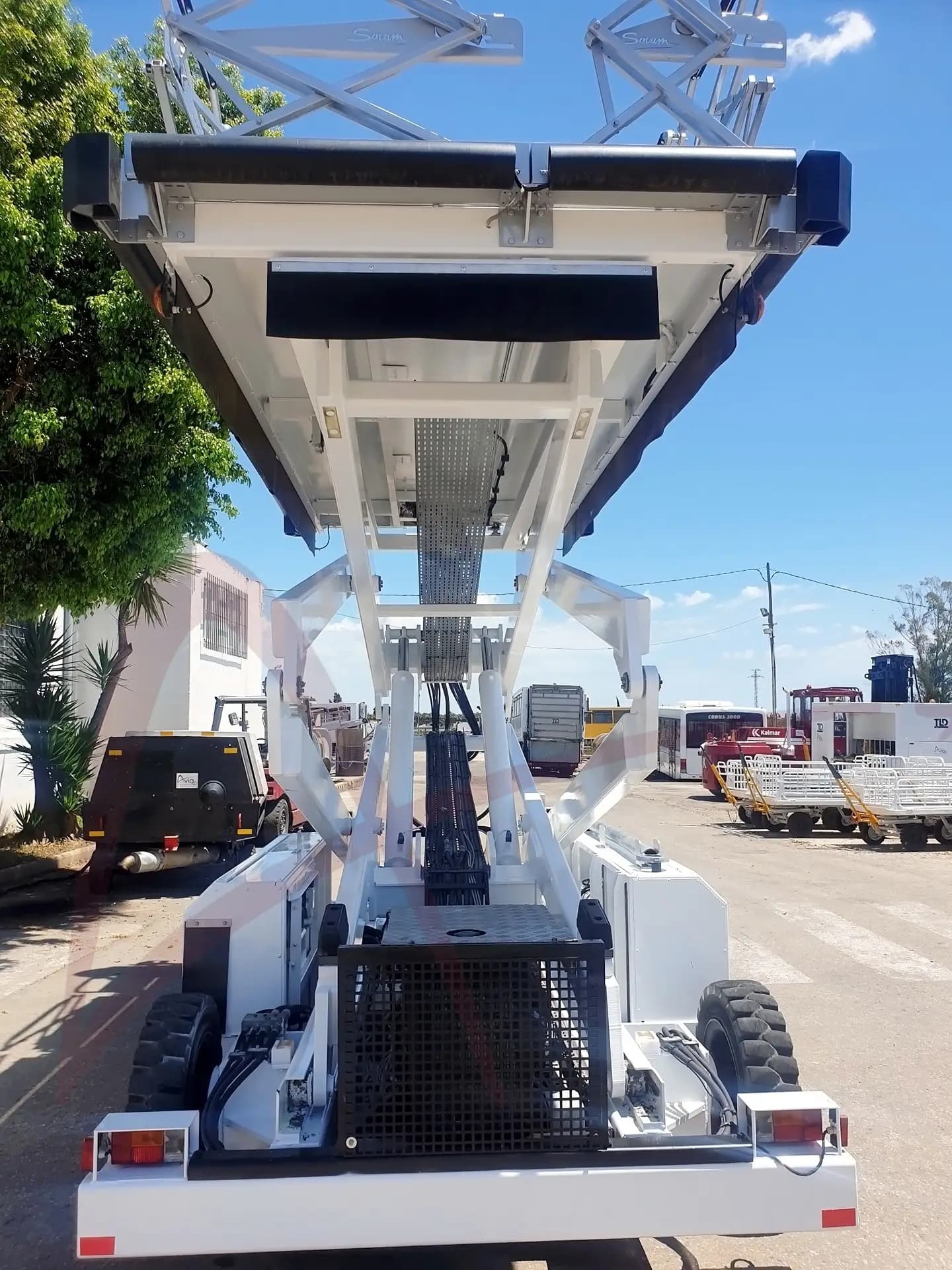

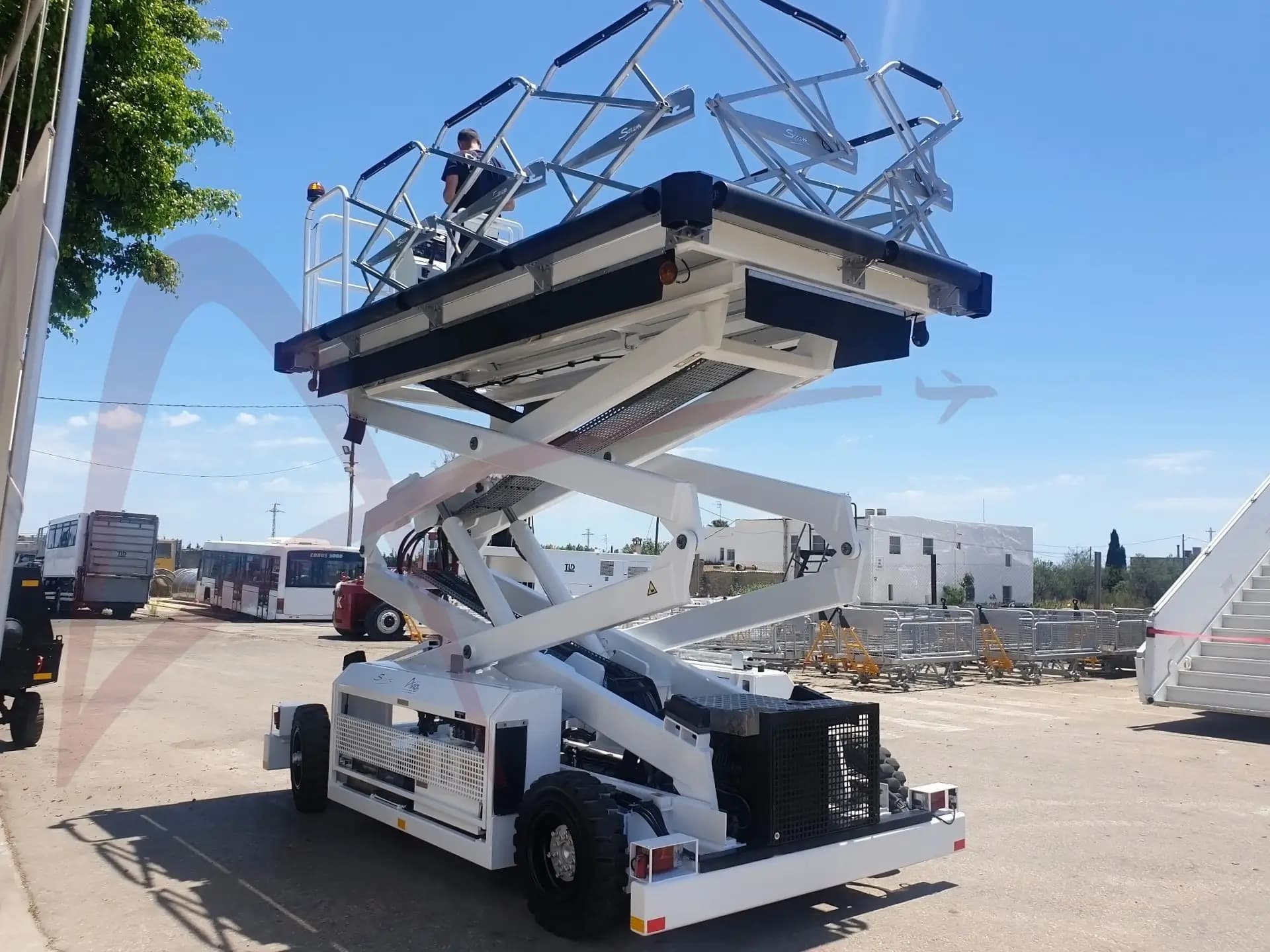

SOVAM PA80

Self-propelled maintenance platform

PA maintenance platforms are self-propelled elevating platforms with hydraulically activated hinged levers (scissors).
The plateau and its elevator system are installed on a motorized carrier. The platform is driven directly from the operating station located on the plateau. Its unrivaled stability enables the platform to operate at an upper position with winds up to 80kph (50 mph).

• Elevation system with double scissors
• Maximum payload 465 Kg (4 persons with tools)
• Platform back sliding: 1 500 mm
• Minimum height 1430 mm
• Maximum height 8 000 mm
• Maximum working height 10 000 mm
• Handrail height 1 100 mm
• Elevation speed: 1 to 6 m/min
• Foldable handrail (3 positions)
• Tilting sensor 5% X-Y axis
• Overload control
• Anti-sliding floor
• 3 safety anchorage rings
• Front, rear and side light
• Working light on driving station.
