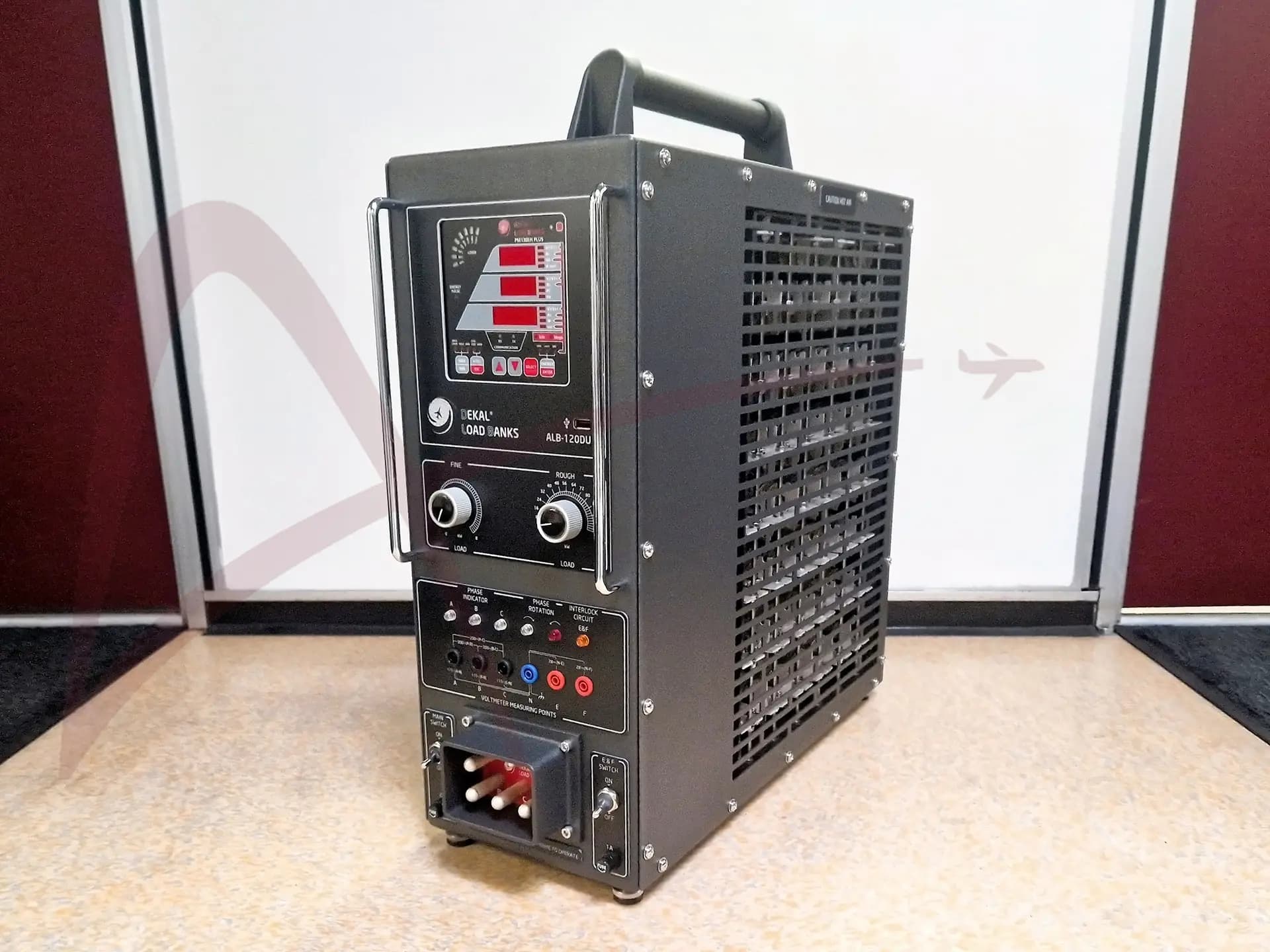

DEKAL ALB-120DU

400Hz AC Digital USD Load Bank

Made for GPU’s testing procedure according to ISO 6858, DFS 400, ARP 5015.

• Simple operation suitable for non-trained operators.
• Silent operations <70 dB(A) at a distance of 7m / 23Ft.
• Suitable for workshop and/or airside operation.
• Environmental operating temperature from -20 C to 55 C / -4 F to  122 F.
• Transport casing with pull-up handle as standard for each load bank.
• Triple thermal protection – extremely resistant to high-temperature.
• Cant protection – load bank works only in the horizontal position.
• Phase detection – load bank works only if all ABC phases are available.
• Phase rotation indicator – phase sequence of three-phase voltages.

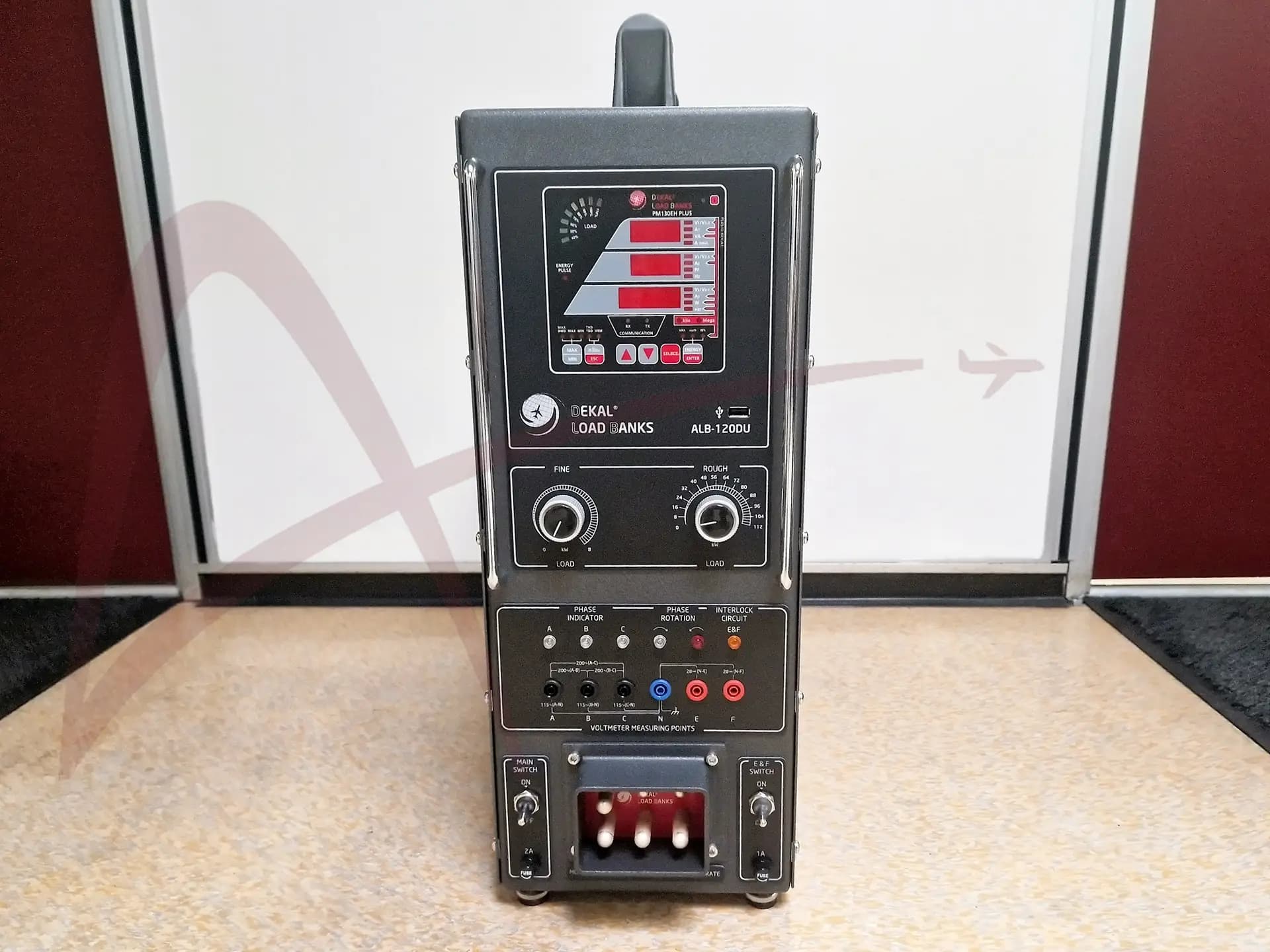

• Fine regulation as standard for all AC – 400 Hz load banks.
• Aluminum housing and non-corrosive parts.
• High component quality control by manufacturer.
• High reliability – effective standardisation process.
• Cable pin jacks – unique user-friendly safety feature for external voltage test.
• Spare parts availability and accurate on-time deliveries.
• Short worldwide delivery period with tracking feature.
• Standards & requirements according to ISO 6858, DFS 400, ARP 5015.
• Classification CE marking, DIN, VDE, IEC, IP 21 protection rate level.



ALB-120DU – 120 kVA Digital USB

• Voltage * Frequency: 115/200V AC +/- 10% * 400 HZ +/- 10%
• Load / Lower (kW / kVA cos=1): 0-120 kW +/- 5%
• Fine Adjustment – Potentiometer: 0 to 8 kW
• Rate Switch Regular Load Steps +/- 5%: 8-16 kW, 16-24 kW, 24-32 kW, 32-40 kW, 40-48 kW, 48-56 kW, 56-64 kW, 64-72 kW, 72-80 kW, 80-88 kW, 88-96 kW, 96-104 kW, 104-112 kW, 112-120 kW.

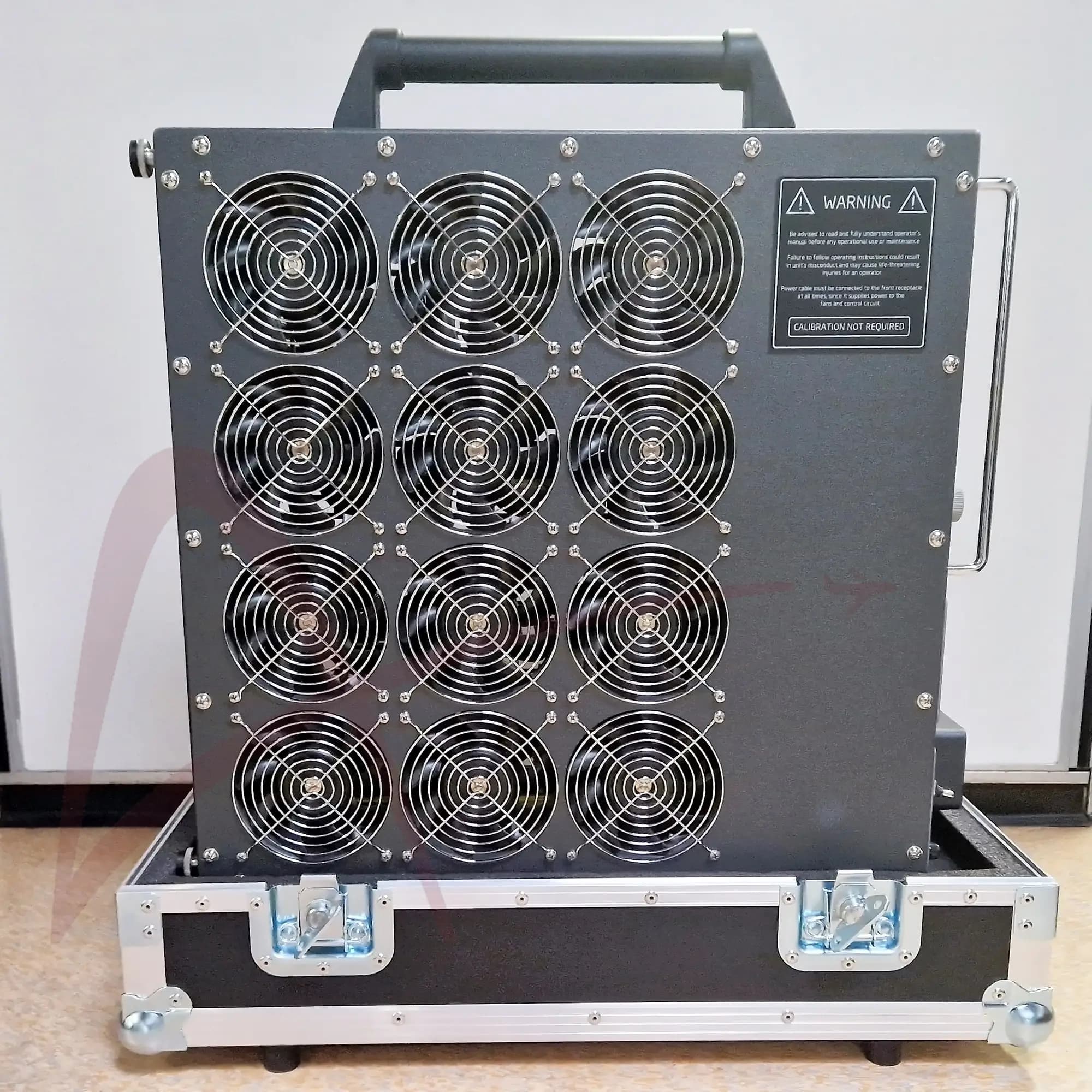

• Force Air Cooling: 88.20 m3/min – 3120 CFM.
• Load Bank Size: 600x230x630 mm – 33 kg / 23.6×9.05×24.8 inch  – 73 lbs.

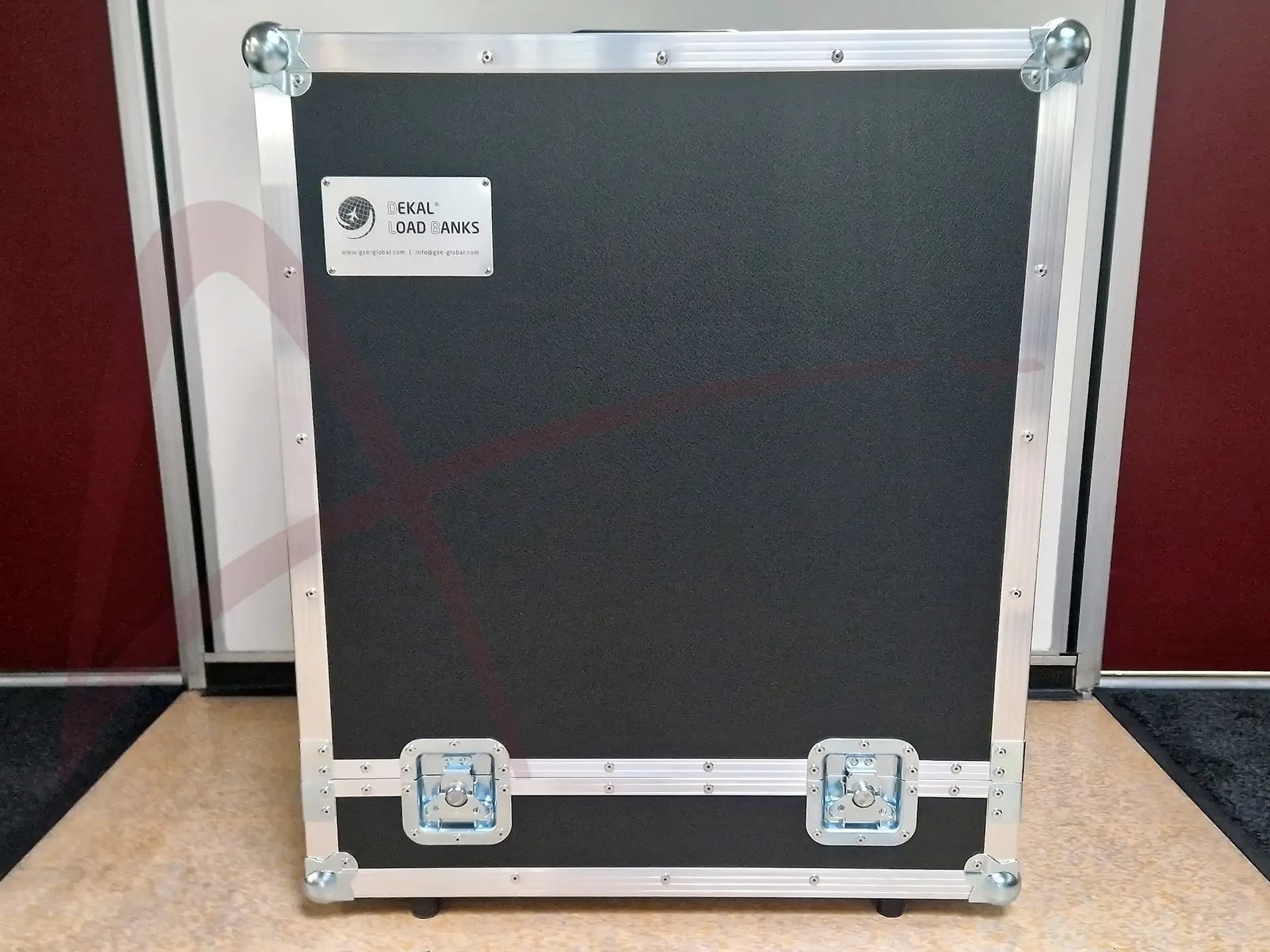

• Transport Casing: 710x290x860 mm – 19 kg / 27.9×11.4×33.9 inch- 42 lbs.
• Load Bank Painting / Transport Casing: Powder Coating Fine Structure 71319 IGP – Swiss Quality / High Grade Aluminum.
