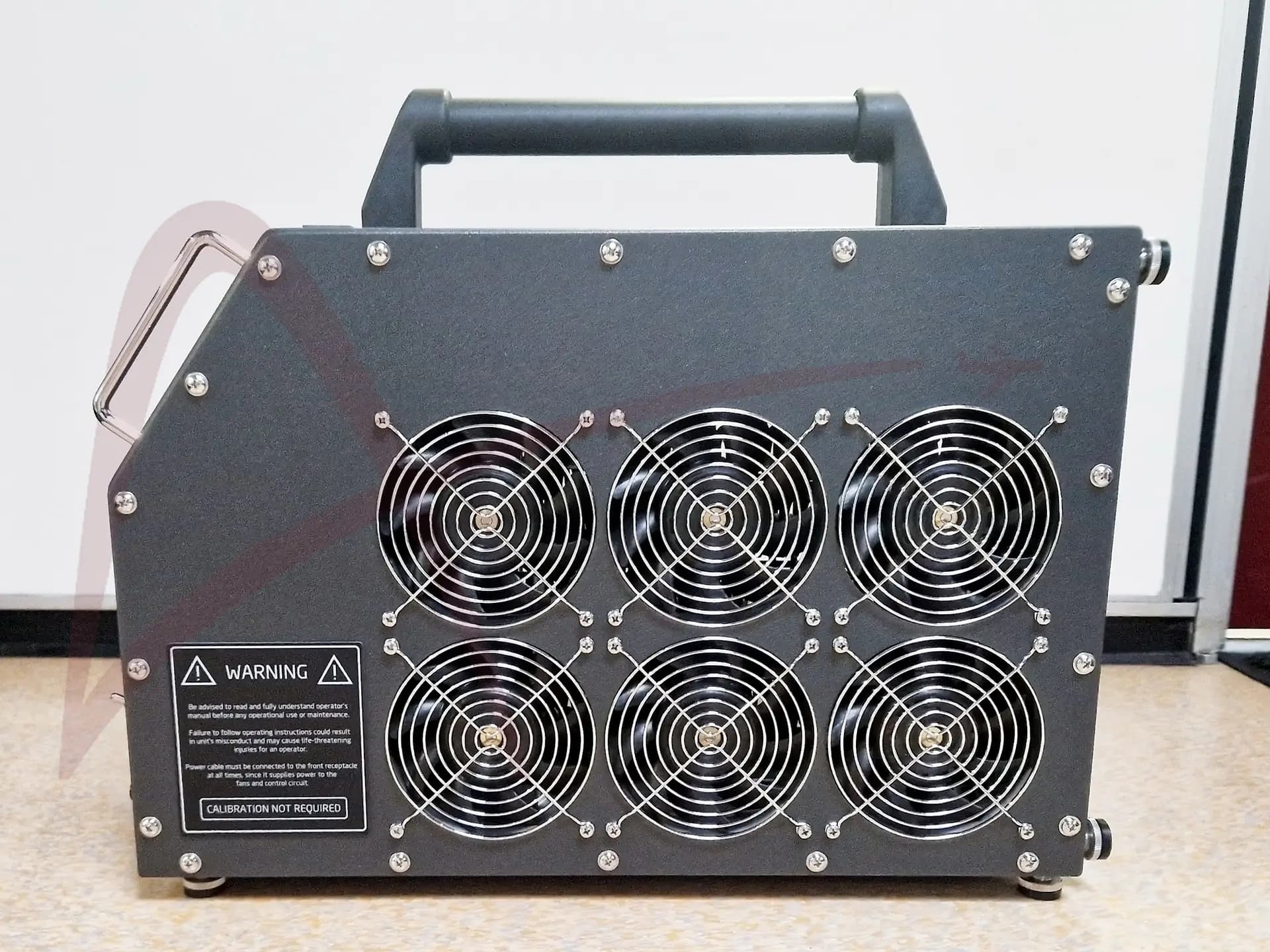

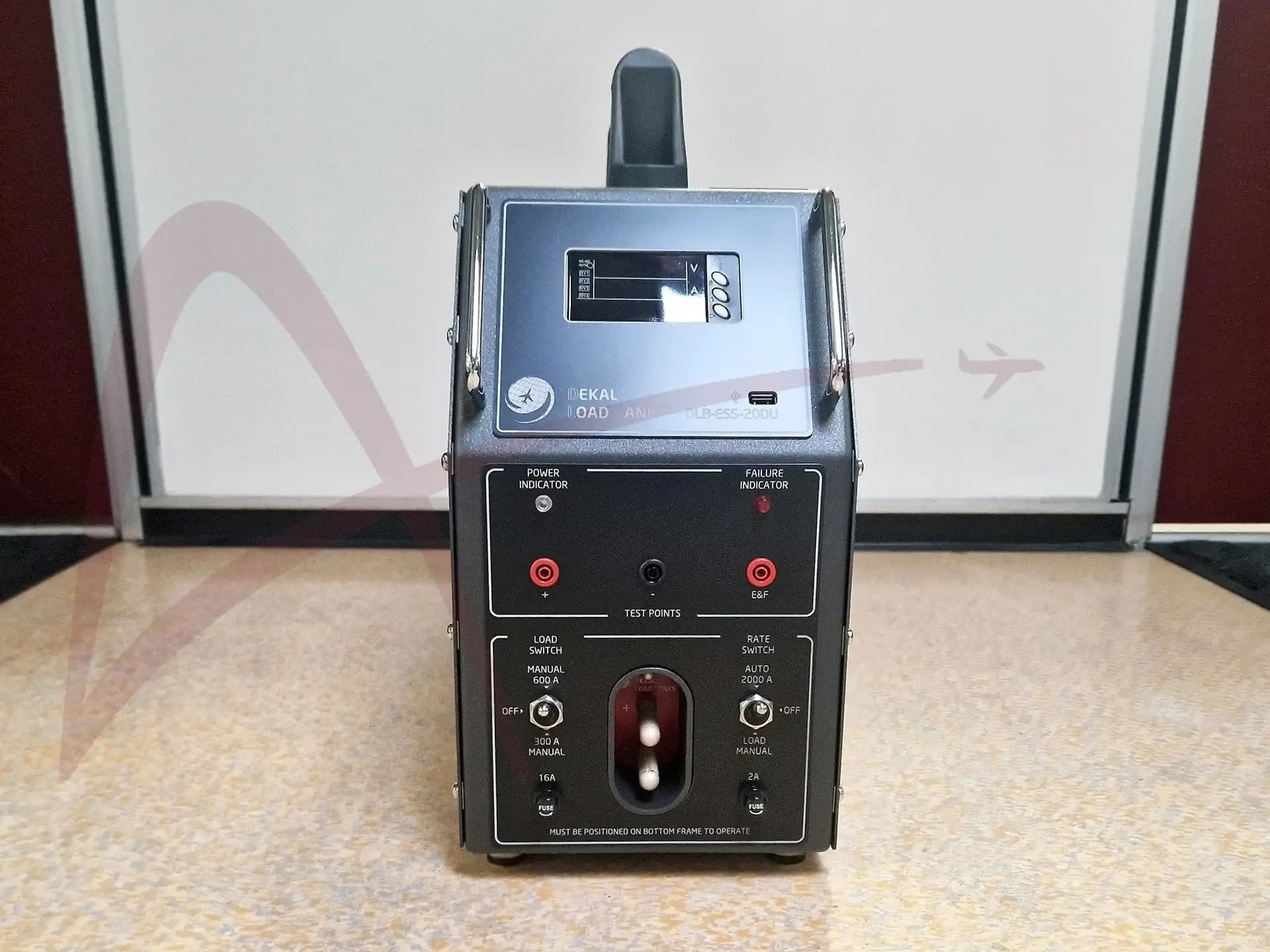

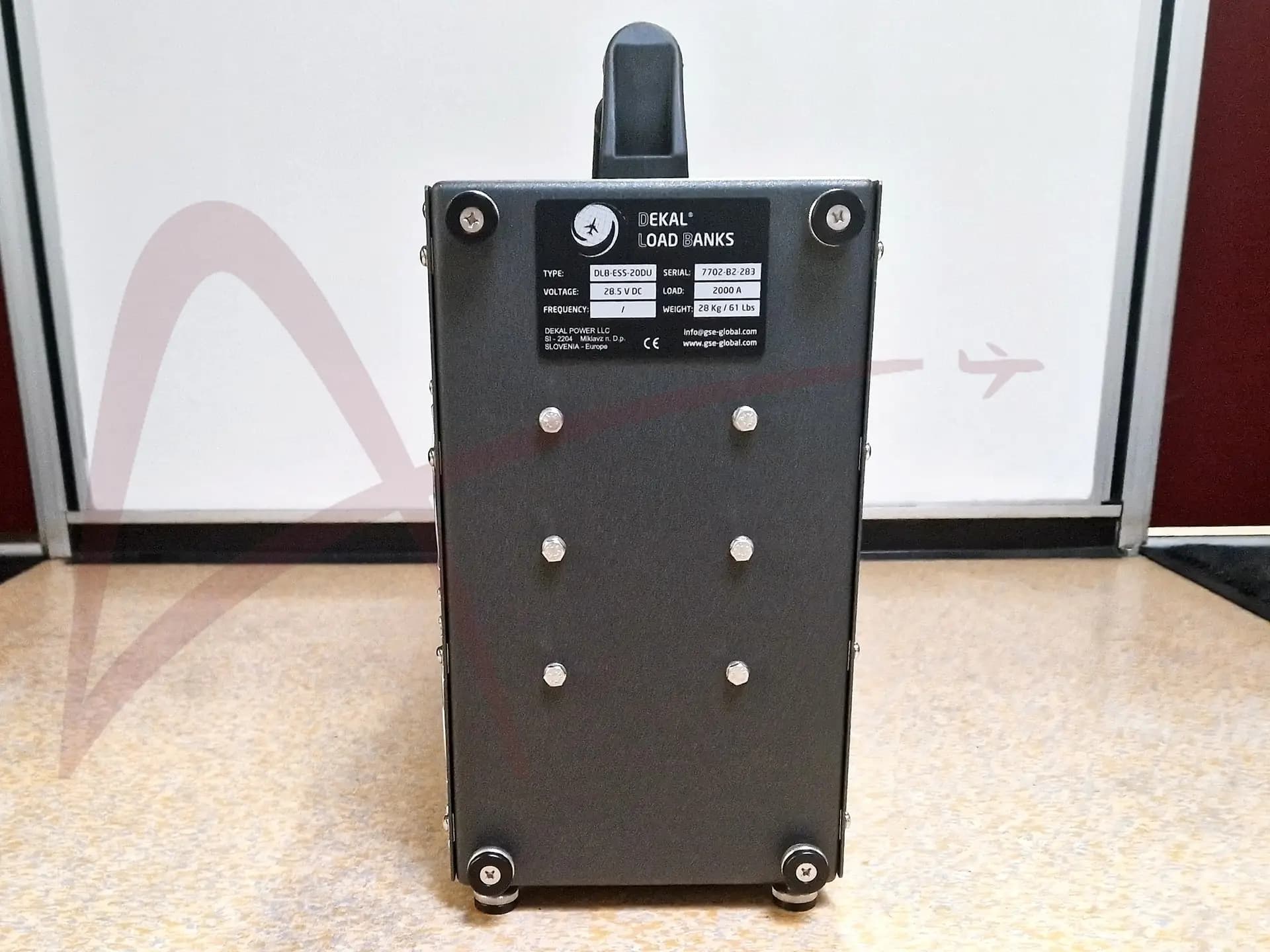

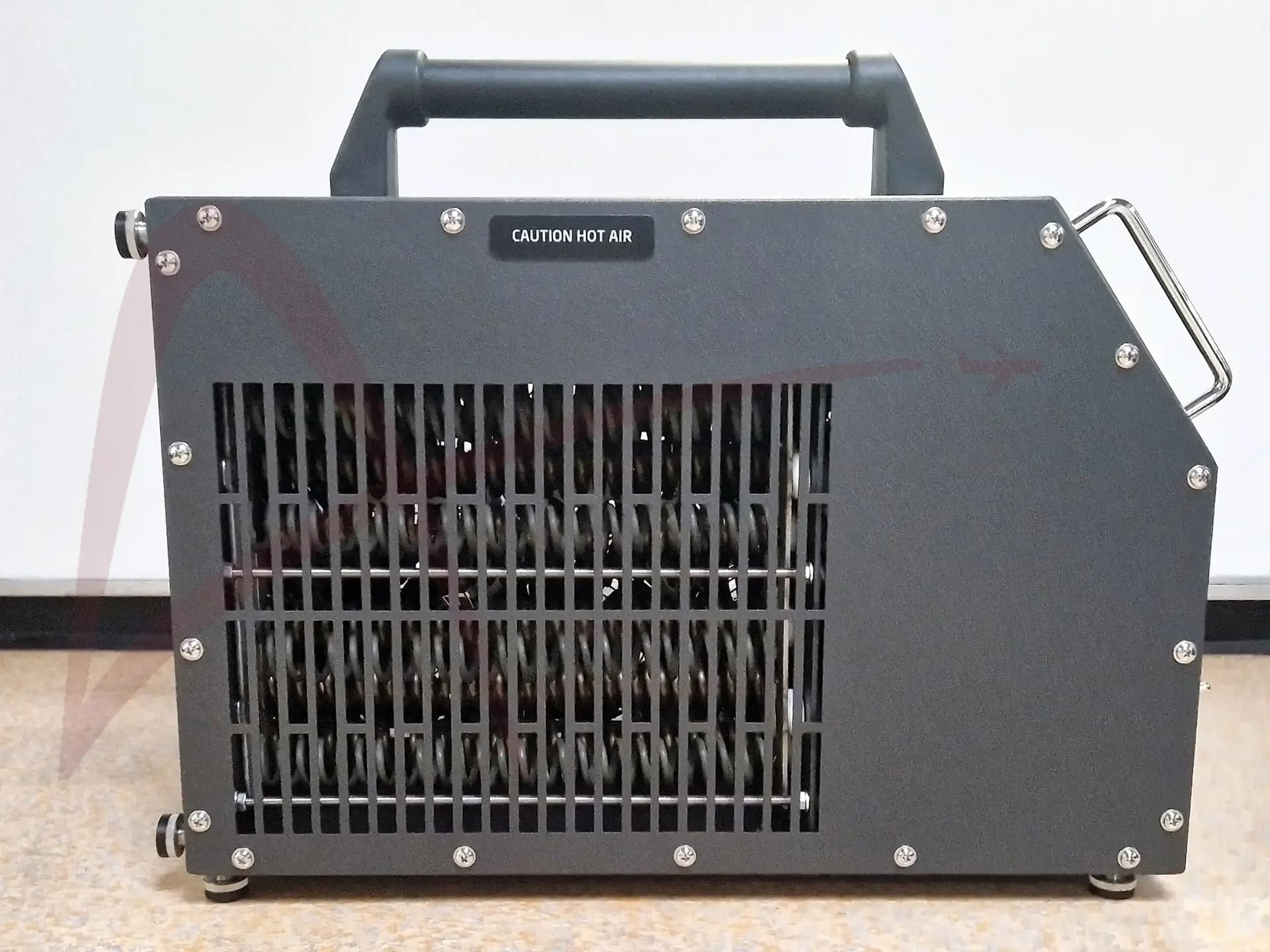

DEKAL DLB-ESS-20DU

28.5 V DC Digital USB Portable Load Bank

PORTABLE RESISTIVE LOAD BANK – DIGITAL USB

Made for GPU’s testing procedure according to ISO 6858, DFS 400, ARP 5015.

Load 300 A or 600 A continuous & 2000 A decreasing (ESS-Engine Start Sequence). Isolated jack sockets for connecting external measurement devices (digital voltmeter), power, and E&F circuit indicator lights.
300 A (30 minutes) or 600 A (15 minutes) continuous preprogrammed load 3 lines.
LED digital instrument (Current, Voltage, Power) with USB output.
USB output with free DEKAL license software enclosed.

ADVANTAGES of 28.5V DC LOAD BANK

• Simple operation suitable for non-trained operators and personnel; no maintenance required.
• Suitable for workshop or airside operation; silent unit rated at < 70 dB(A) at 7m / 23Ft.
• Digital load banks do not require any further calibration process once delivered.
• Free DEKAL licensed software application & proper drivers included.

All measurements possible to archive & print out, including diagram graphics.

• In accordance & fully complied with AFI 33-115 volume 2, Certified by SAF/A6C.
• 28.5 V DC 3-Pole receptacle in accordance with NATO & MIL-C-81790 specifications.
• Continuous load test and pre-programmed decreasing Engine Start Sequence (ESS) simulation.
• Customised options in accordance with your 28.5 V DC requirements are available on demand.
• Housing made of non-corrosive parts with component quality control by the manufacturer.
• High reliability with multiple thermal protection – extremely resistant to high temperature.
• Extra safety and isolated jack sockets for connecting external voltage measuring devices.
• Short worldwide delivery period with tracking feature and insurance for all products.
• Spare parts availability and accurate on-time deliveries by appointed courier.

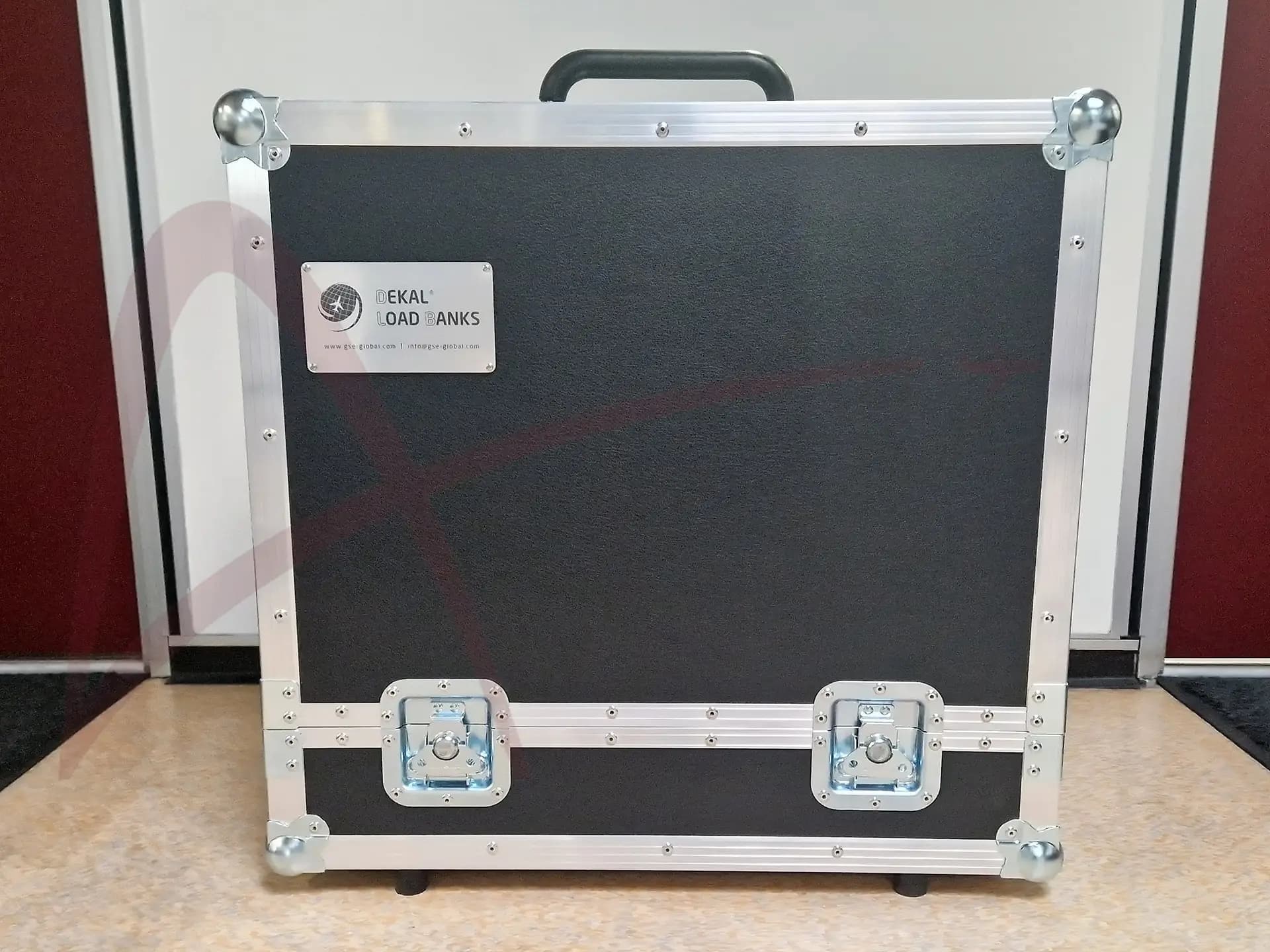

• Transport casing with pull-up handle as standard for every load bank manufactured.
• CE certification – health, safety, and environmental protection standards.
