HYDRO HS120
Miscellaneous & Workshop EquipmentBrand :
HydroParameters :
- Capacity
- 10t
- Engine
- Non-motorized
- Year
- 2007
- Length
- 3,500 mm
Specifications
- Capacity
- 10t
- Year
- 2007
- Engine
- Non-motorized
- Length
- 3,500 mm
- Width
- 3,500 mm
- Height
- 4,900 mm
- Weight
- 1,100 kg
Description

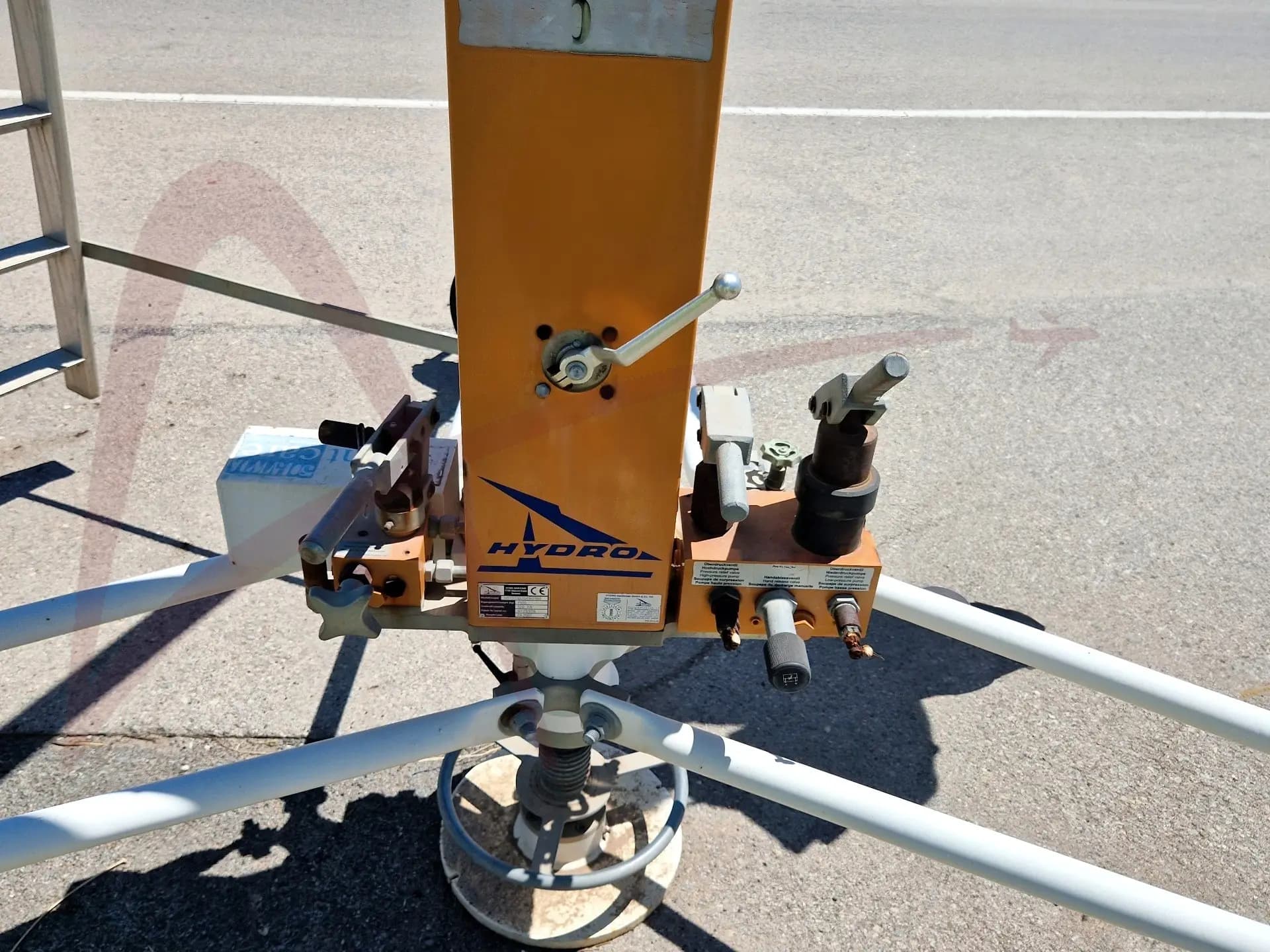

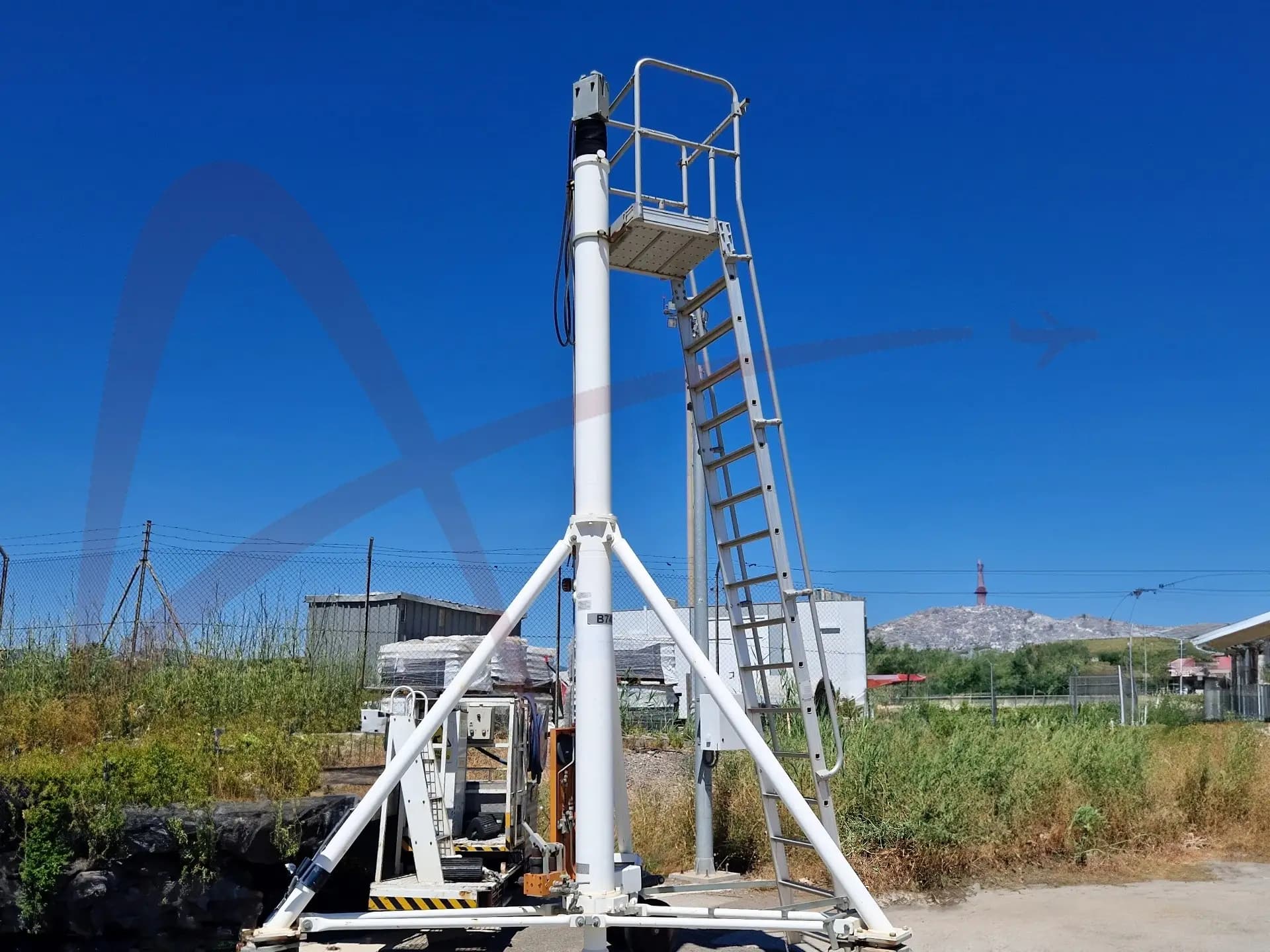

Auxiliary Tail Stanchion (10t)
The Auxiliary Tail Stanchion (10t) is a support unit designed to provide stability and reinforcement in industrial and aerospace applications. With a capacity of 10 tons (11 tons), this unit ensures safety and durability in maintenance operations and heavy load handling.
Technical Specifications:
- Capacity: 10 tons
- Minimum height: 4900 mm (192.9 inches)
- Hydraulic lift: 2100 mm (82.7 inches)
- Screw extension: 250 mm (9.8 inches)
- Maximum height: 7250 mm (285.4 inches)
Features:
- Tripod structure for maximum stability.
- Hydraulic lift system with high-strength cylinder.
- Manually operated safety lock nut for added reliability.
- Skydrol-resistant paint for enhanced durability.
- Built-in bubble level to verify vertical alignment.
- Fixed ground plates and integrated transport wheels.
- Modular design adaptable to different aircraft configurations.
Applications
A300-B2/-B4
A330
A340-200/-300
A340-500/-600
A400M
A350-900/-1000
This equipment is Airbus and Boeing validated, ensuring compatibility with a wide range of aircraft. Its robust design and high-quality construction make it a reliable and durable solution for maintenance operations in hangars and airports.
Available Units
1 unit
| Photo | Ref. Number | Year | Hours | Type | Purpose | Stock | Actions |
|---|---|---|---|---|---|---|---|
 | AV14395 | 2007 | — | Refurbished | Sale / Rent | In Stock | |
| |||||||
- Reference
- AV14395
- Year
- 2007
- Condition
- Refurbished
- Sale / rent
- Sale / Rent
- Stock
- In Stock
Model FAQ
1 unit is listed, built 2007. Each row in the table has its own reference number, year and hours.
Both: 1 of the 1 units are for sale and 1 can be rented.
1 refurbished. The condition of each unit is in its row.
Yes. Add the rows you want from the units table to your request cart. To ask for any unit instead, "Or request any unit of this model" under the summary puts the model itself in your request, and you set how many you need.
