FINKBEINER EHB807V11
Miscellaneous & Workshop EquipmentBrand :
FinkbeinerParameters :
- Capacity
- 7,5 t
- Engine
- Non-motorized
- Year
- 2007
- Length
- 1,150 mm
Specifications
- Capacity
- 7,5 t
- Year
- 2007
- Engine
- Non-motorized
- Length
- 1,150 mm
- Width
- 1,130 mm
- Height
- 2,255 mm
- Weight
- 540 kg
Description

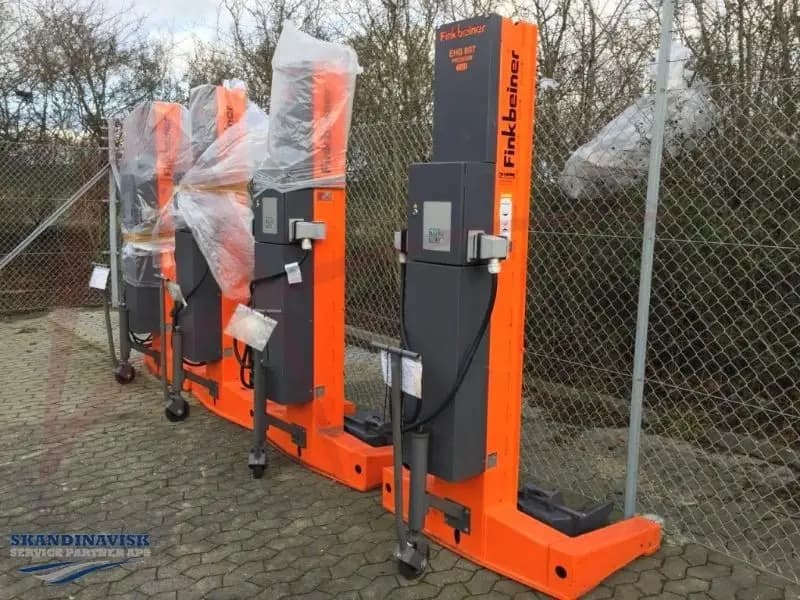

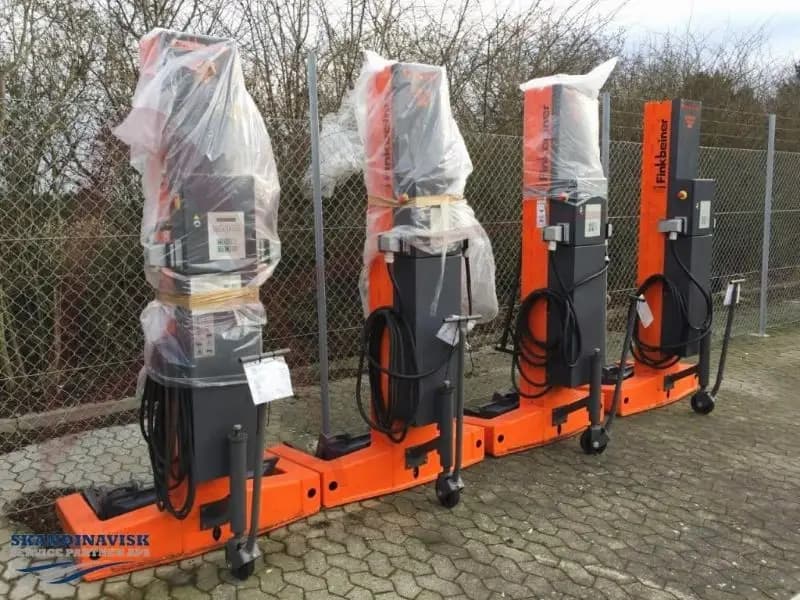

Mobile column lift
Load support
- Adjustable wheel forks 155R13 – 13R 22.5, Ø 550 – 1140mm
- Length of lifting fork 385 mm, suitable for super singles
- Lifting stroke: 1750mm
- Speed: Up 70 sec., Down 60 sec.
- Slow speed for fine positioning
- Soft start with continuous increase of speed
Operation
- Up / Down from each column
- Operation modes: All / Single
- Interconnecting cables from column to column around the vehicle in a circuit with one open end to drive-in/out
- Interconnecting cable per slave column, plugs on both ends, length 10 m
- Power supply cable 10 m at master column
- Max. 24 columns per lift set (4 master, 20 slave columns)
- Display indication | LCD display at master column, optional at slave columns| Active columns within lift set| Active operation mode| Height in „mm“
- Control: Smooth synchronization without abrupt speed variations, height tolerance of max. 2mm
- Continuous monitoring of all operational functions
- Control voltage 24V DCDrive
- Electro-hydraulic Motor 2.2 KW per column
- Hydraulic cylinder self-lubricating, cylinder rod encased by steel tube
- Proportional valves for smooth control without any increments
- Connection | 400 V / 3 Ph / 50 Hz, fuse 35 A (per master column)
Positioning wheels
- Rear: wheel jack, spring-loaded, with locking brake
- Front: Retractable spring-loaded front wheels for minimum floor pressure.
Dimensions | 1150 x 1130 x 2255mm (l x w x h) per column.
Weight | 540 kg per column
- Protection class: IP 65 Safety features.
- Double load securing with hydraulic and mechanical locks.
- Hydraulic pressure relief valve preventing overload.
- Main switch lockable, with emergency stop at each column Safety standards | CE, EN 1493
Available Units
1 unit
| Photo | Ref. Number | Year | Hours | Type | Purpose | Stock | Actions |
|---|---|---|---|---|---|---|---|
 | AV10206 | 2007 | — | Refurbished | Sale / Rent | In Stock | |
| |||||||
- Reference
- AV10206
- Year
- 2007
- Condition
- Refurbished
- Sale / rent
- Sale / Rent
- Stock
- In Stock
