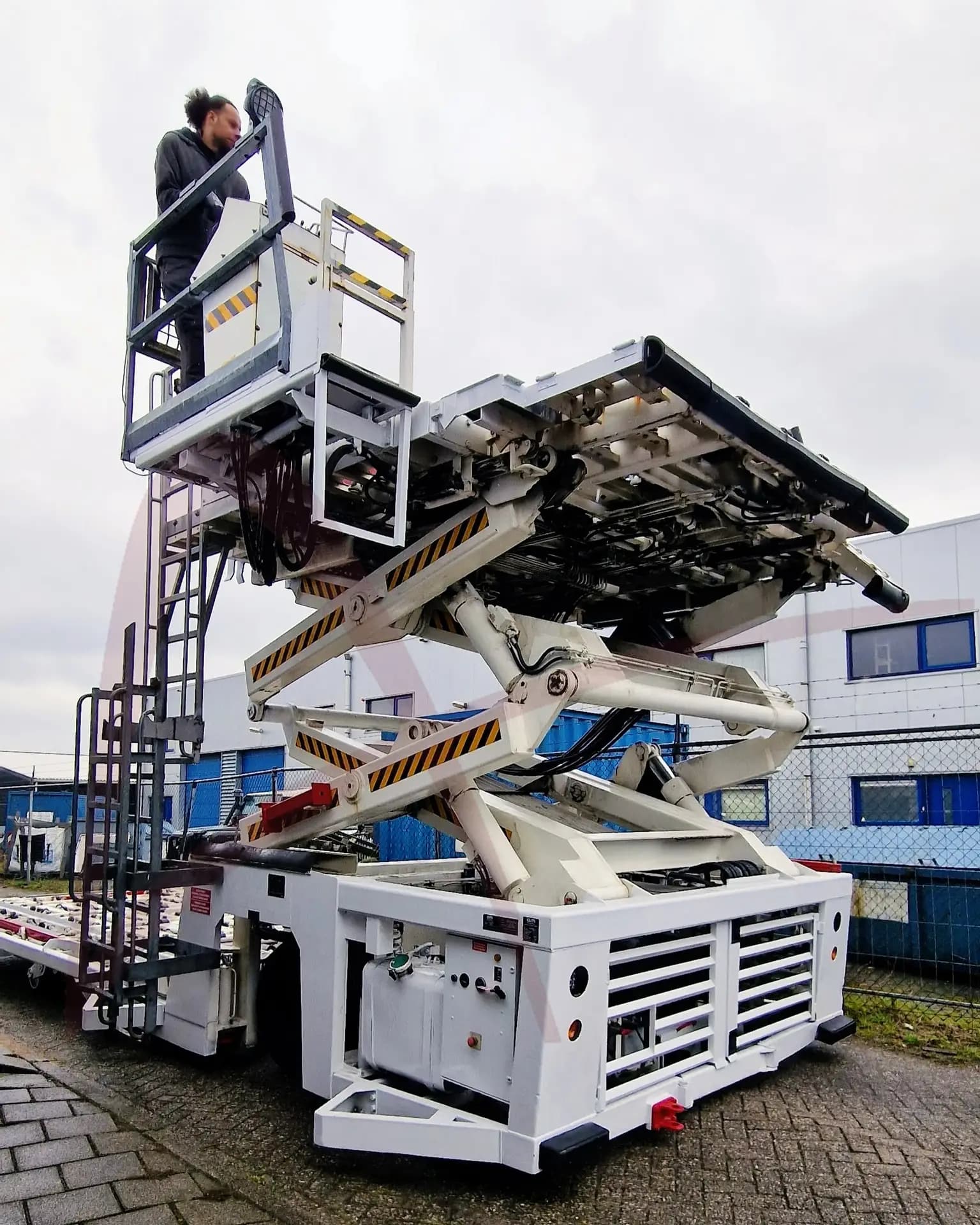

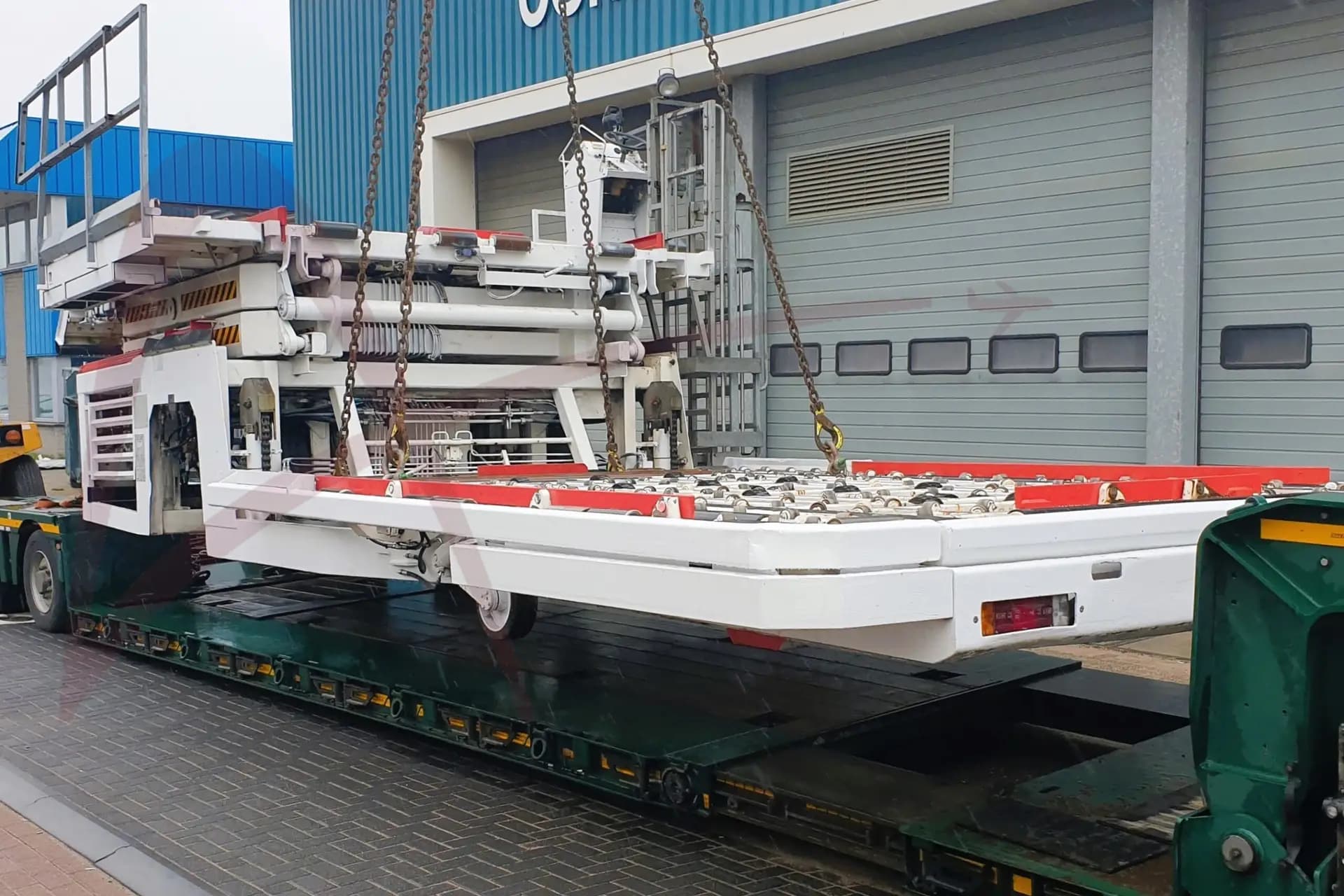

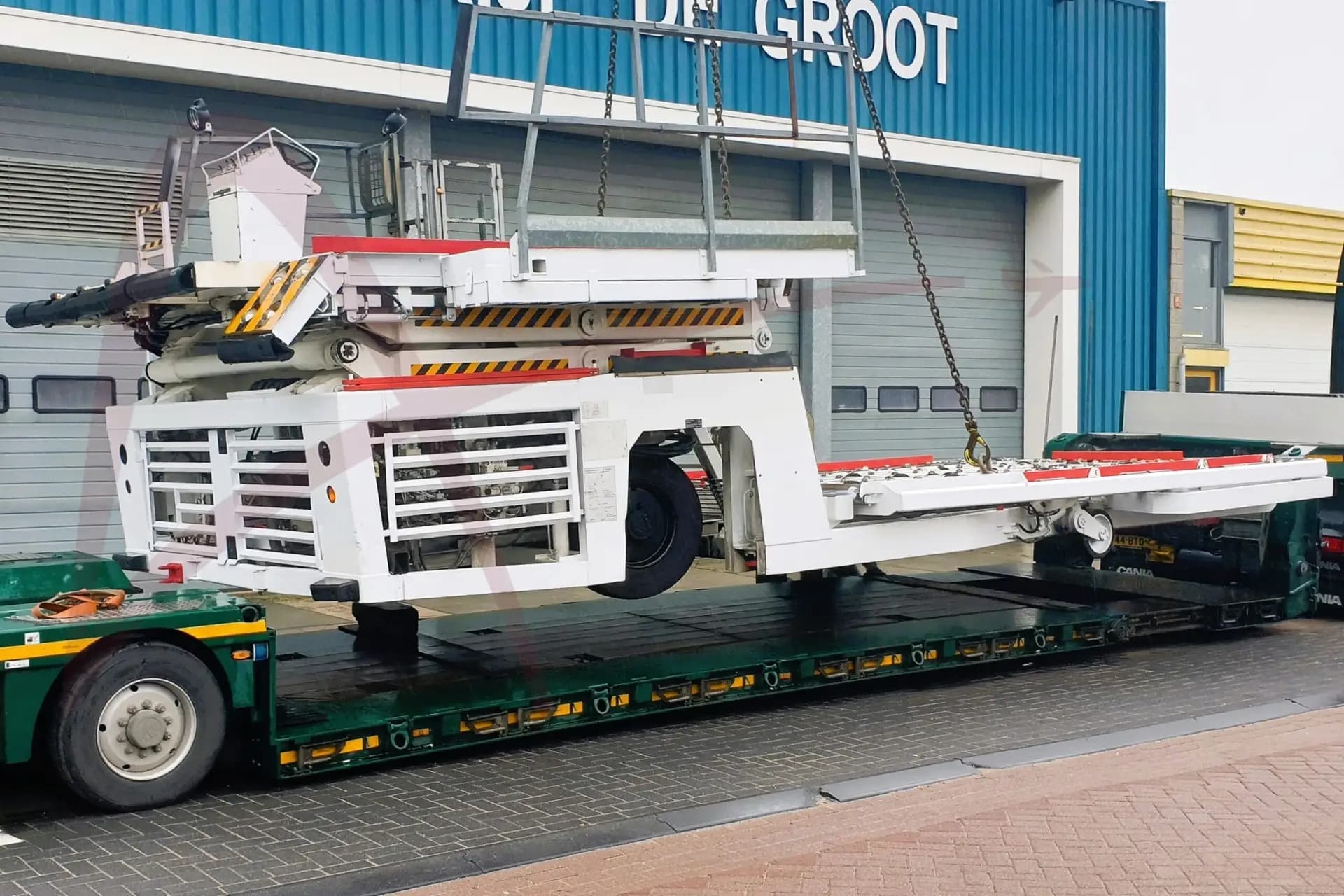

AIR MARREL LAM7000 DP/MDL8
Aircraft Cargo LoadersBrand :
Air MarrelParameters :
- Capacity
- 7,000 kg
- Engine
- Diesel
- Year
- 2009
- Hours
- 905 hrs.
Specifications
- Capacity
- 7,000 kg
- Year
- 2009
- Hours
- 905 hrs.
- Engine
- Diesel
- Length
- 8,900 mm
- Width
- 3,750 mm
- Height
- 2,540 mm
- Weight
- 15,000 kg
Description
7t main deck loader
The LAM7000 DP/MDL8 universal loader will handle the main-deck of wide-body aircraft, such as the B747 freighter or combi, the DC10 and the A300 C4.
**Loader Capabilities:**
* Baggage container/pallet transfer to the lower-deck and main-deck compartments of: B747, B757, B767, DC10, MD11, L1011, A300, A310, A320, A330, A340 and B777 aircarfts.
* Pallet transfer to main-deck of: DC8F, DC9F, B707 C, B727 C, B727 QC, B737 C, B737 QC, BAE146 QT/QC aircraft.
* Pallet transfer, widhtwise or lengthwise, into the B767 ER
* Handling capacity: 2 LD2 or LD3 containers or one LD6 or LD8
* Standard pallet handling up to 96″ x 125″, lengthwise or widthwise.
* Front loading and transfer height to the aircraft from: 1.890 m to 5.470 m (74″ to 220″).
* It can load and unload cargo from ground vehicles at a height of 508 mm (20″) with a minimum height of 490 mm (19.3″) and a maximum possible height (on the rear) of 1500 mm (50″).
Available Units
1 unit
| Photo | Ref. Number | Year | Hours | Type | Purpose | Stock | Actions |
|---|---|---|---|---|---|---|---|
 | AV12541 | 2009 | 905 Hours | Refurbished | Rent | In Stock | |
| |||||||
- Reference
- AV12541
- Year
- 2009
- Hours
- 905 hrs.
- Condition
- Refurbished
- Sale / rent
- Rent
- Stock
- In Stock
Model FAQ
1 unit is listed, built 2009. Each row in the table has its own reference number, year and hours.
These units are for rent (1 of 1).
1 refurbished. The condition of each unit is in its row.
Yes. Add the rows you want from the units table to your request cart. To ask for any unit instead, "Or request any unit of this model" under the summary puts the model itself in your request, and you set how many you need.
Request a quote for AIR MARREL LAM7000 DP/MDL8
Say how many you need and where. You get a first reply within one business day.
