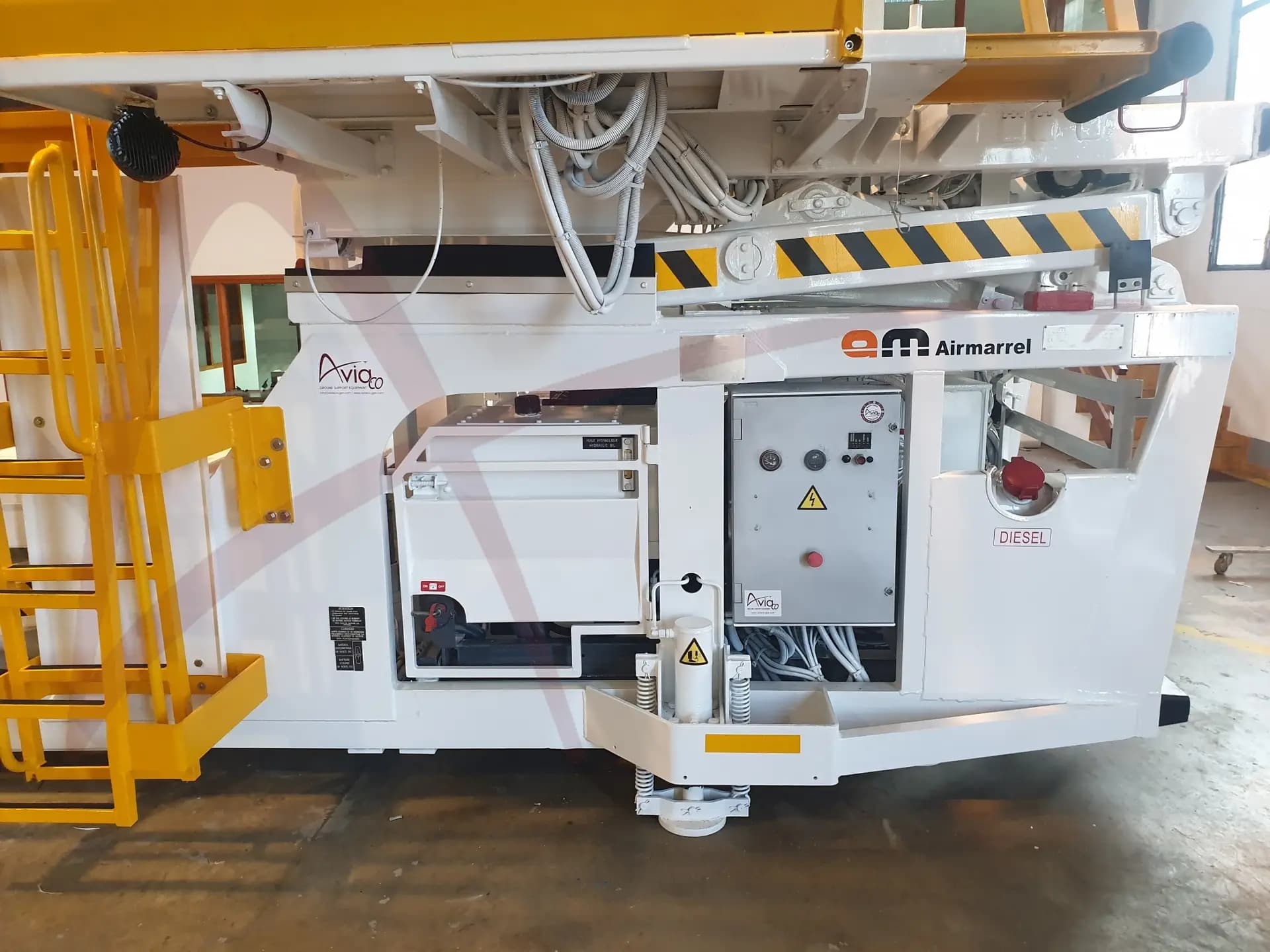

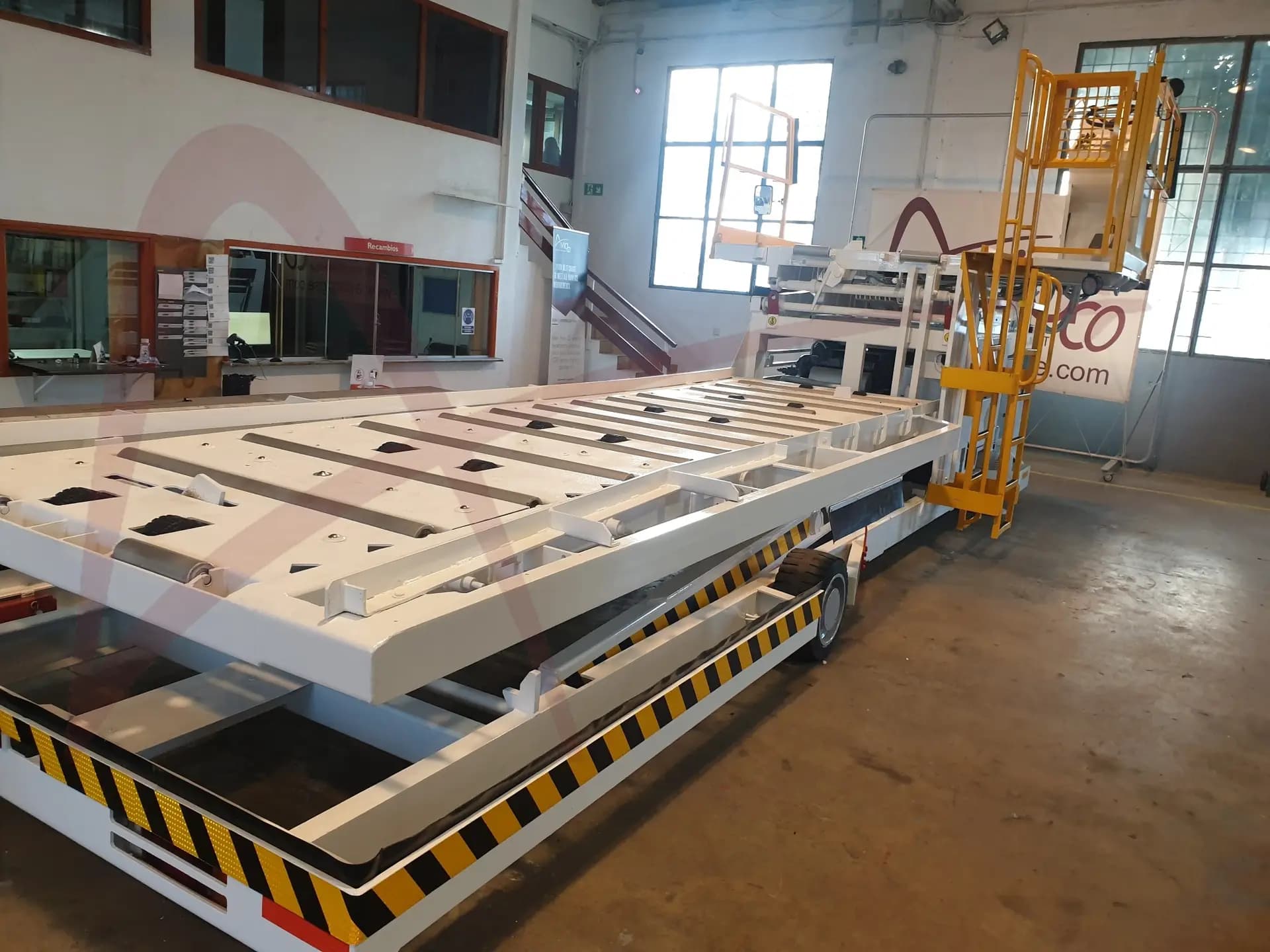

AIR MARREL LAM 3500 DP/R8
Aircraft Cargo LoadersBrand :
Air MarrelParameters :
- Capacity
- 3,500 kg
- Engine
- Diesel
- Year
- 2004 – 2009
- Hours
- 2,623 – 6,399 hrs.
Specifications
- Capacity
- 3,500 kg
- Year
- 2004 – 2009
- Hours
- 2,623 – 6,399 hrs.
- Engine
- Diesel
- Length
- 8,130 mm
- Width
- 2,260 mm
- Height
- 2,450 mm
- Weight
- 7,400 kg
Description
3,5t double platform lower deck loader
LOADER / TRANSPORTER FOR PALLETS AND CONTAINERS UP TO 60.4″ WIDE AND 7800 LBS (3500 KG) CAPACITY
The LAM 3500 DP/R8 can:
- transfer baggage and cargo containers or pallets (max.60.4″ wide) to the front and rear lower deck compartments of Boeing B767 and Airbus A319, A320 aircraft.
- transfer baggage and cargo containers/pallets to the rear lower deck compartments of DC10, MD11, L1011, A300, A310 aircraft.
- receive independantly on the front platform one AKH container or LD1, LD2, LD3.
- receive on the rear platform 2 special AKH containers or 2 standard containers LD1, LD2, LD3 or 1 container LD4, LD6, LD8, LD11 or standard aircraft pallet up to 1540mm * 3175mm (60.4″ * 125″).
- transfer containers or pallets to the aircraft at transfer heights from approximatively 1.865 m to 3.365 m (73.5″ * 132.5″).
- receive and discharge loads from ground vehicles at a height of 508mm (20 in.), with a minimum height of 480 mm (19 in.) and a maximum possible height (on the rear) of 1600mm (63 in.).
Available Units
2 units
| Photo | Ref. Number | Year | Hours | Type | Purpose | Stock | Actions |
|---|---|---|---|---|---|---|---|
 | AV12543 | 2009 | 2,623 Hours | Refurbished | Sale / Rent | In Stock | |
| |||||||
| AV11908 | 2004 | 6,399 Hours | Refurbished | Sale / Rent | In Stock | |
| |||||||
- Reference
- AV12543
- Year
- 2009
- Hours
- 2,623 hrs.
- Condition
- Refurbished
- Sale / rent
- Sale / Rent
- Stock
- In Stock
- Reference
- AV11908
- Year
- 2004
- Hours
- 6,399 hrs.
- Condition
- Refurbished
- Sale / rent
- Sale / Rent
- Stock
- In Stock
