TIMSAN LSC300/700E

Electric toilet cart / lavatory service cart

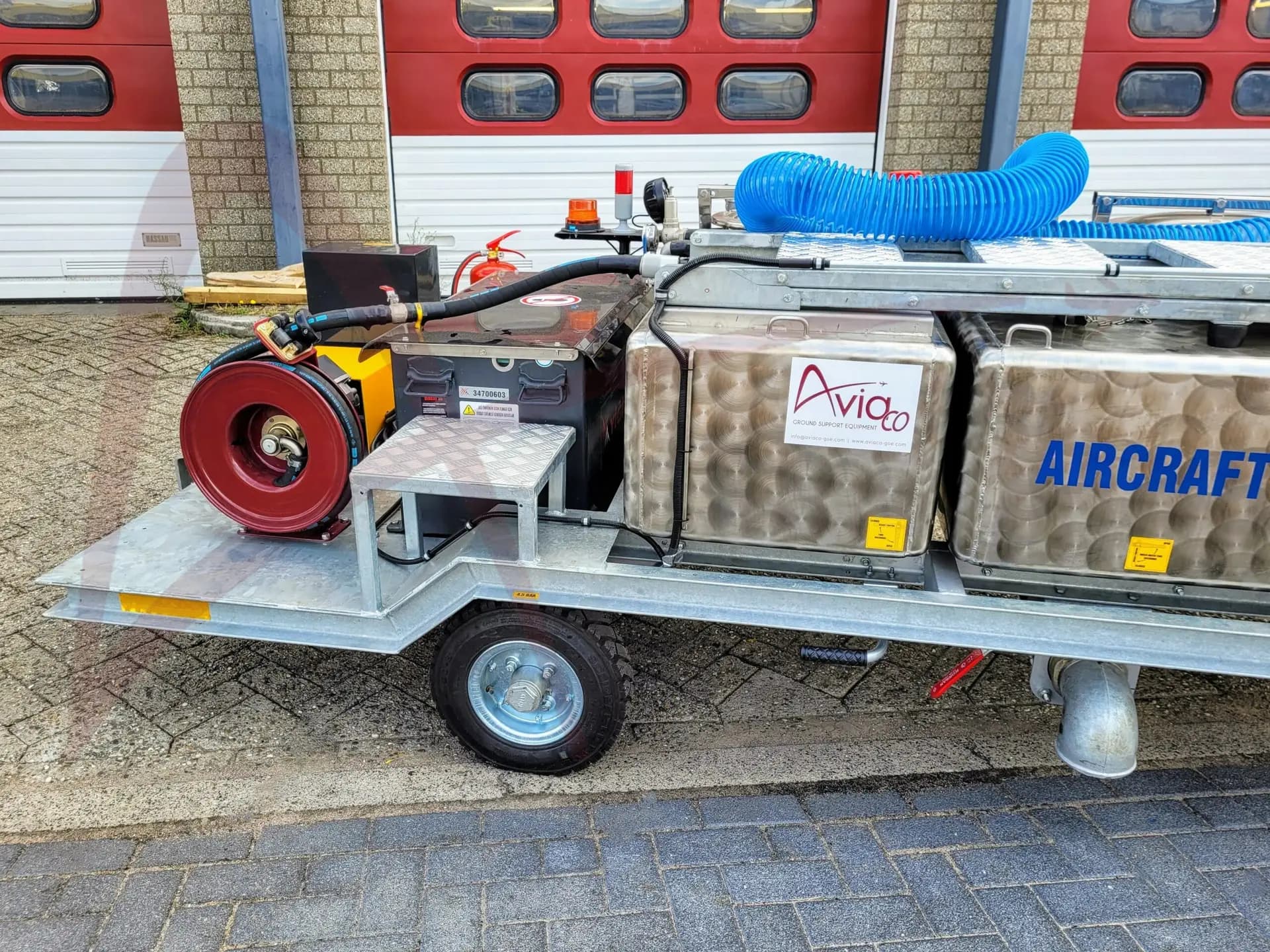

Timsan electric Lavatory Service cart (Toilet Cart) LSC300/700E has water capacity of 300 litres and lavatory capacity of 720 litres.
The unit is brand new with 0 operating hours.

• Flow rate: 90 lt./min.
• Pump pressure: 3.5 bar.
• The chassis is produced by steel profiles and steel plates.

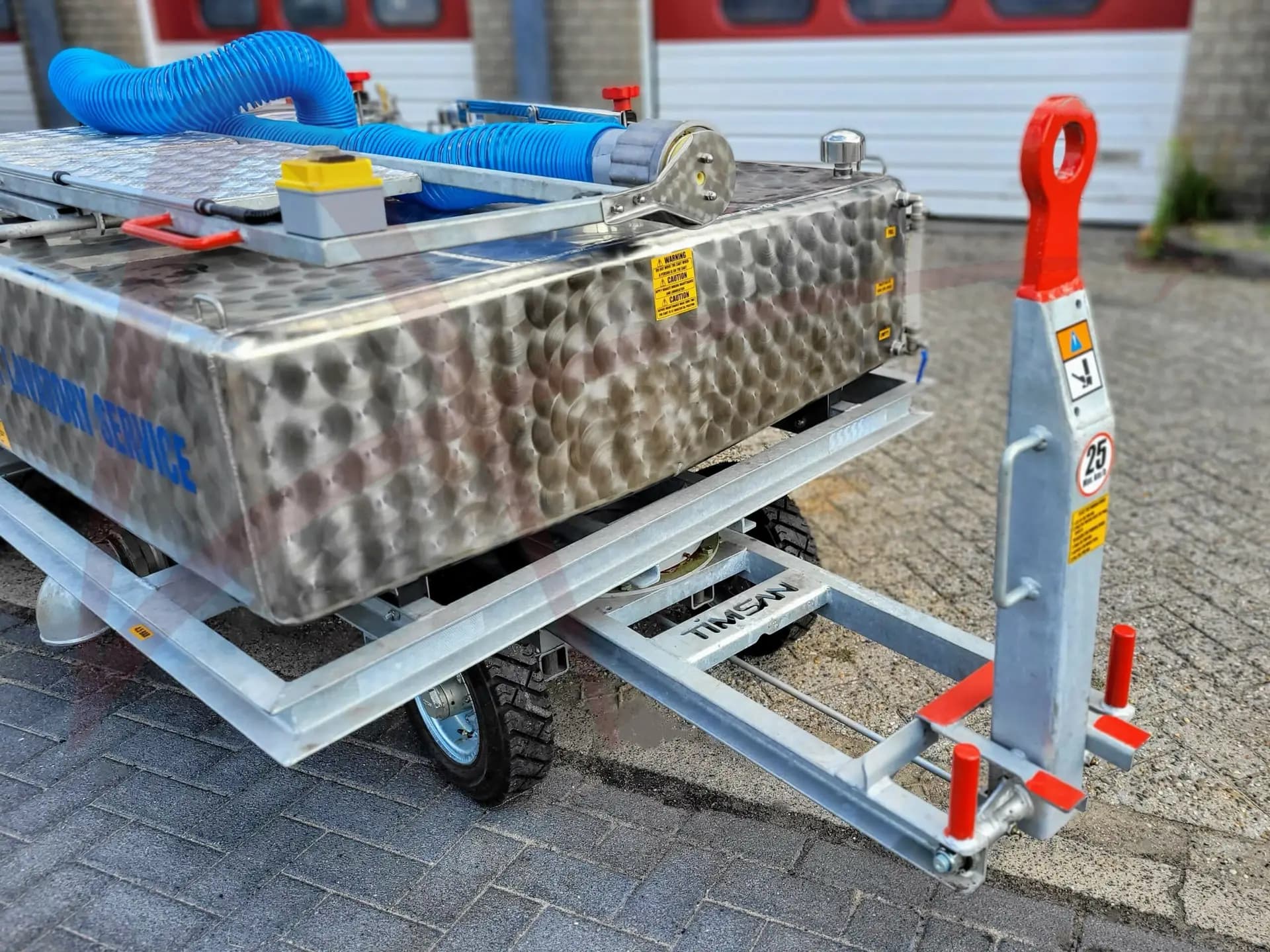

• The tow-bar is provided by a fifth wheel system mounted to the chassis for easy steering.
• Front wheel maneuvering is provided by a slewing ring that works vertically on the axis.
• The steering system equipped with a brake system that is applied when tow-bar is at upright and released position.

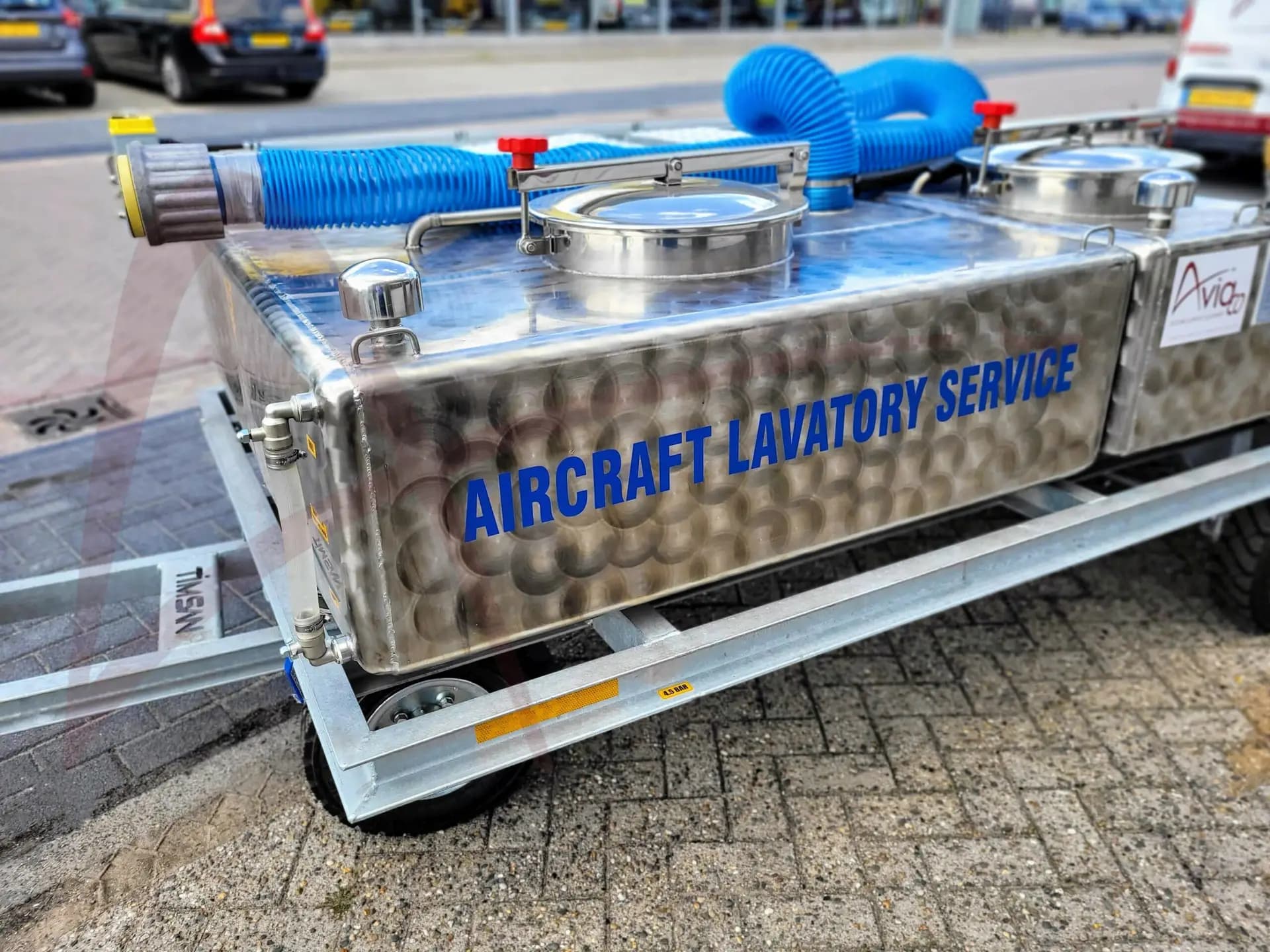

• The tanks are made of stainless steel and provided by manholes, filler caps and discharge valves.
• The top of the tanks are covered with anti slip material or steel grid for safe walking.

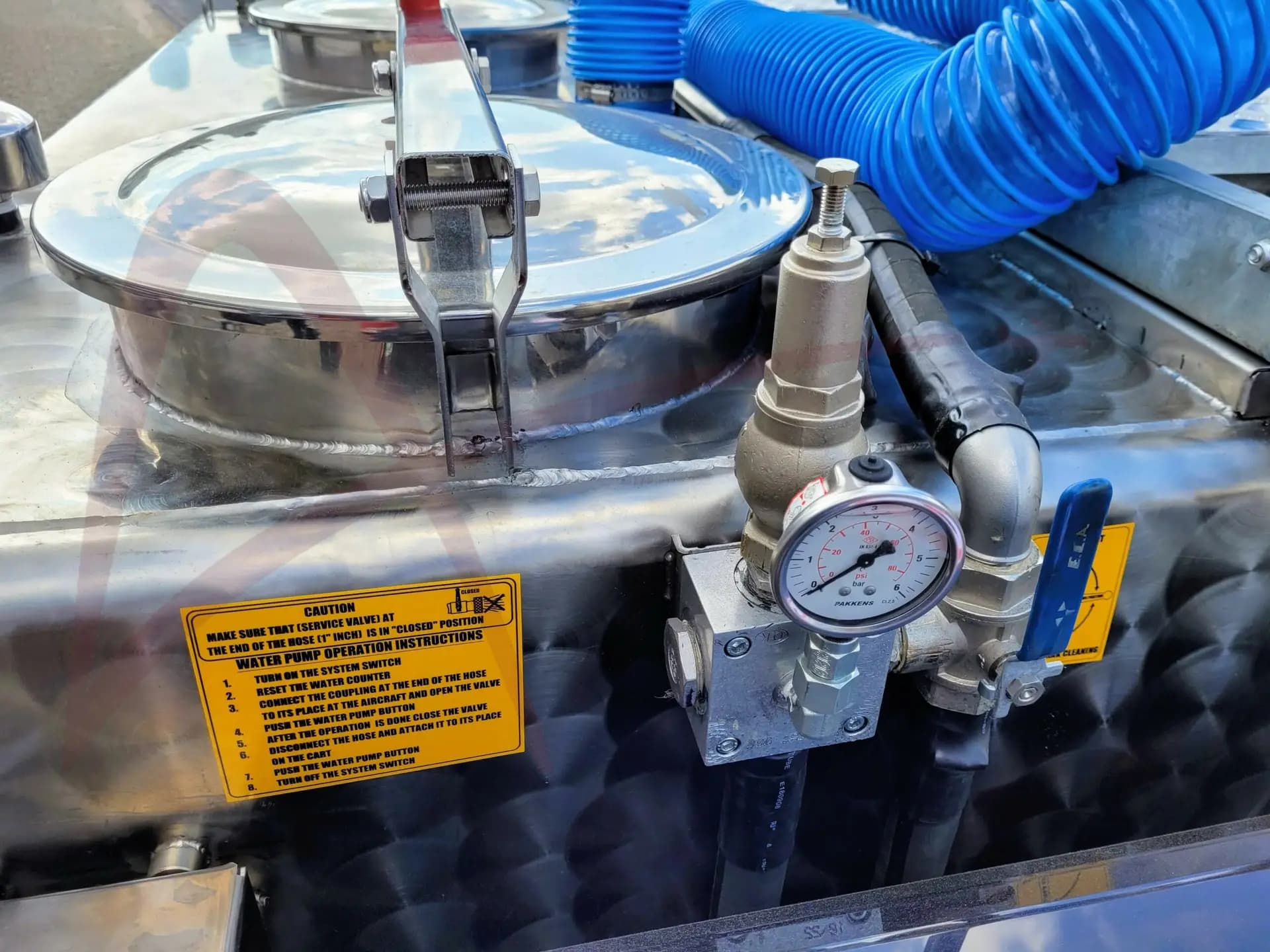

• The clean water pump is driven by hydro-motor, which is powered by the electric motor, to be used to pump the clean water to aircraft’s tank.
• The waste water coupling is made of stainless steel and is of quick coupling type. It is equipped with 4” flexible hose.
• A foldable ladder is provided to be used for operator to reach desired elevating height to serve aircraft.
• All parts are custom painted.
• Options include: heating, insulation, vacuum pump, logo application.
