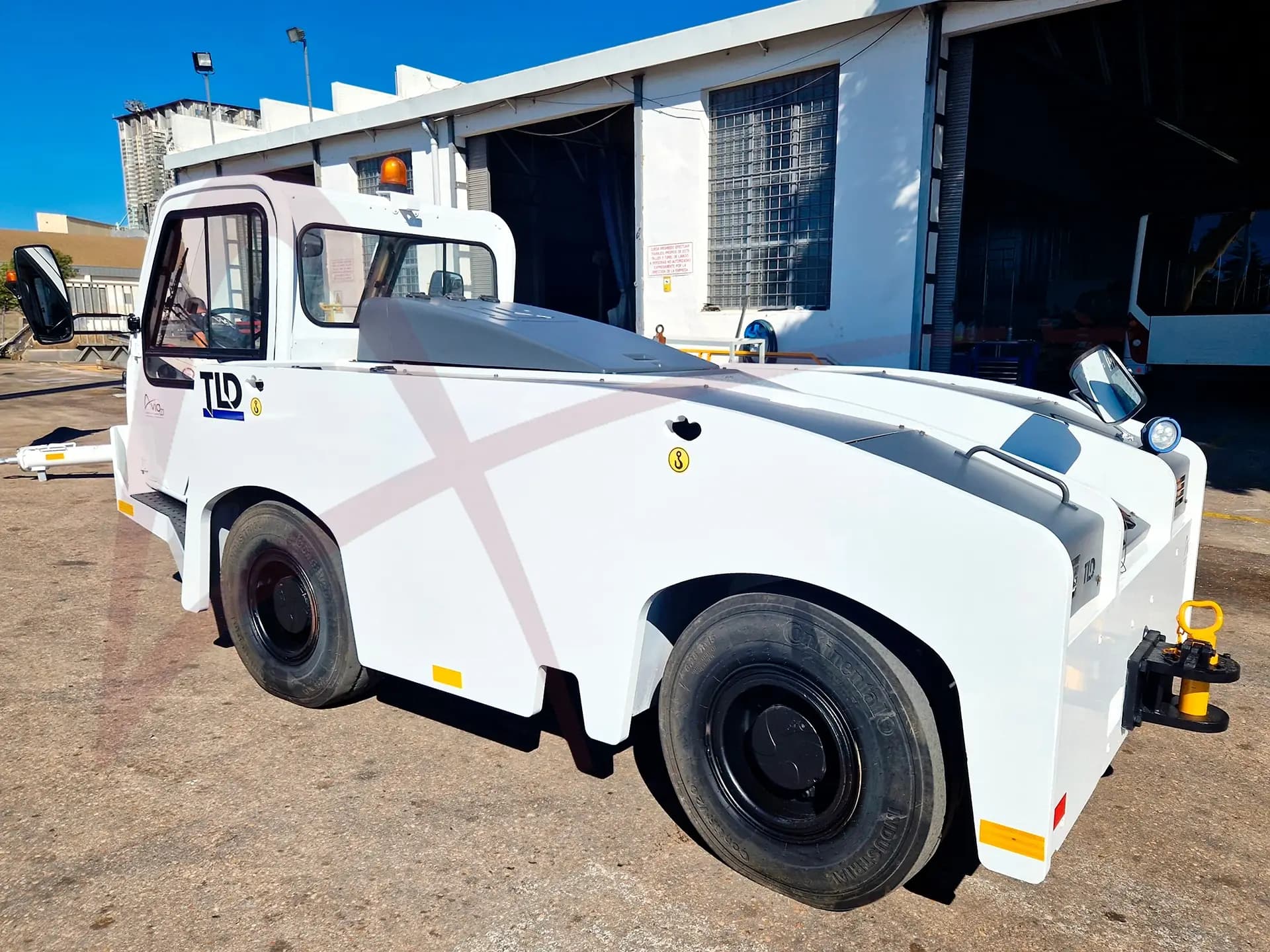

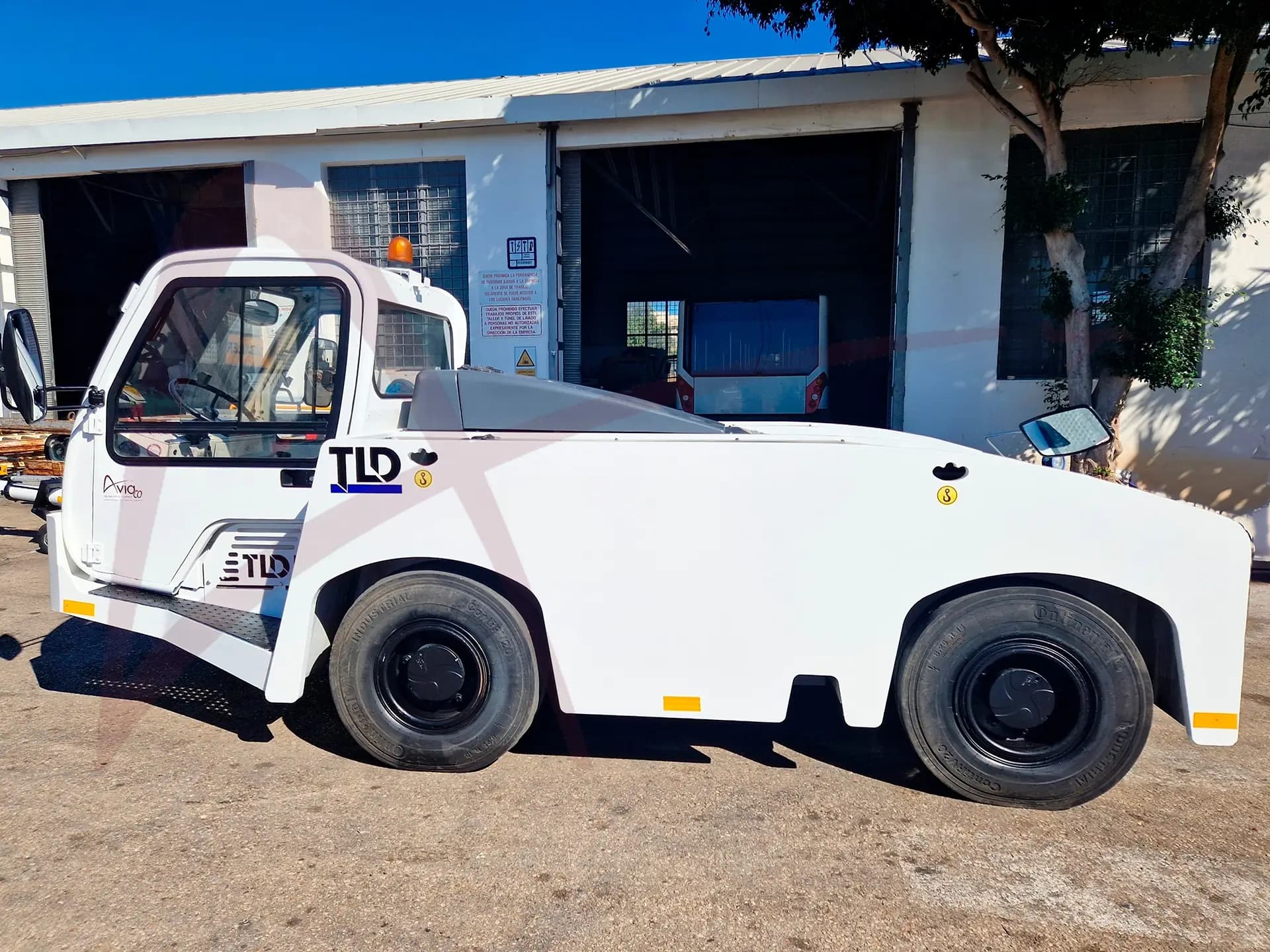

TLD TMX-150/15
Aircraft Pushback Tractors / TugsBrand :
TLDParameters :
- Capacity
- Up to 165t MTOW
- Engine
- Diesel
- Year
- 2014
- Hours
- 6637 hrs.
Specifications
- Capacity
- Up to 165t MTOW
- Year
- 2014
- Hours
- 6637 hrs.
- Engine
- Diesel
- Length
- 4,500 mm
- Width
- 2,000 mm
- Height
- 1,990 mm
- Weight
- 15,100 kg
Description
Pushback tractor for narrowbody aircraft
The TMX-150 aircraft towing tractor, with a maximum draw bar pull up to 12 000 daN (~27,000 lbs), is designed to perform push and pull operations on narrow and medium body A/C, (as CRJ100 to 900ER, ATR 42/72, BAE 146, Embraer 135 to 190, Saab 2000, Fokker 70/100, B717, B727, B737, B757, B767-200 to 300ER, DC9 and MD80 to 95, A318, 319, 320, 321, A300 and A310, and other aircraft). Its ergonomic design provides agility and visibility. TLD’s high standards of build and
component quality make the TMX-150 a durable and reliable tractor.
- Tow hitch : Front and rear hitch with 70 mm (2.7″) diameter tow pin. Manually controlled (1 level)
- Tyres : 8.25 R 15 or 315/70 R15 depending on versions
- Fuel tank capacity : 83 liters (22 US Gal)
- Hydraulic tank capacity : 80 liters (21 US Gal)
- Cab : suspended driver seat, standard seat for passenger
Standard features
- Engine : 4 cylinders turbo diesel engine
- Transmission : CLARK T12000 powershift transmission with torque converter, 4 forward and 3 reverse
- Maximum Speed : (empty)
- Forward 25 kph (15.6 mph)
- Reverse 20 kph (12.5 mph)
- Front axle : DANA SPICER steering and driving axle with leaf spring suspension
- Rear axle : DANA SPICER steering and driving axle
- Brake (Service) : On 4 wheels, hydraulically powered immersed wet disc brake system, dual circuit
- Brake (Parking) : Immersed wet disc brake on 2 front wheels, mechanically actuated
- Steering : Hydraulically-powered steering 4 wheels
Available Units
1 unit
| Photo | Ref. Number | Year | Hours | Type | Purpose | Stock | Actions |
|---|---|---|---|---|---|---|---|
 | AV14584 | 2014 | 6,637 Hours | Refurbished | Sale / Rent | In Stock | |
| |||||||
- Reference
- AV14584
- Year
- 2014
- Hours
- 6,637 hrs.
- Condition
- Refurbished
- Sale / rent
- Sale / Rent
- Stock
- In Stock
