SCHOPF F59

Aircraft Pushback Tractors / Tugs

Brand :

Schopf

Parameters :

Capacity: Up to 70 t MTOW
Engine: Diesel
Length: 3,950 mm
Width: 1,800 mm

Available unitsOn request

Price on request

Return to Catalogue

Specifications

Capacity: Up to 70 t MTOW
Engine: Diesel
Length: 3,950 mm

Width: 1,800 mm
Height: 2,068 mm
Weight: 6,000 kg

Description

Pushback/tow tractor for narrow-body aircraft

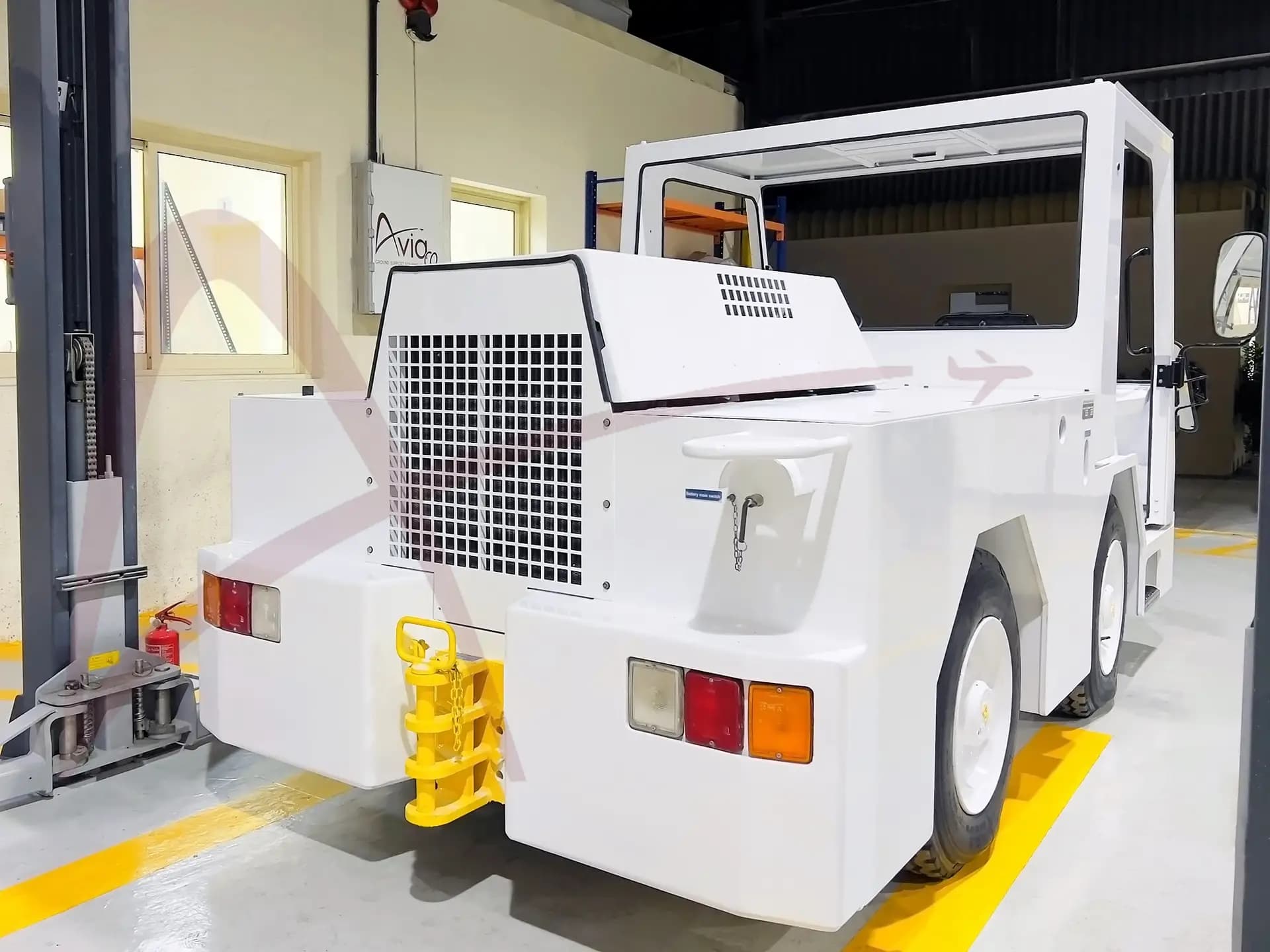

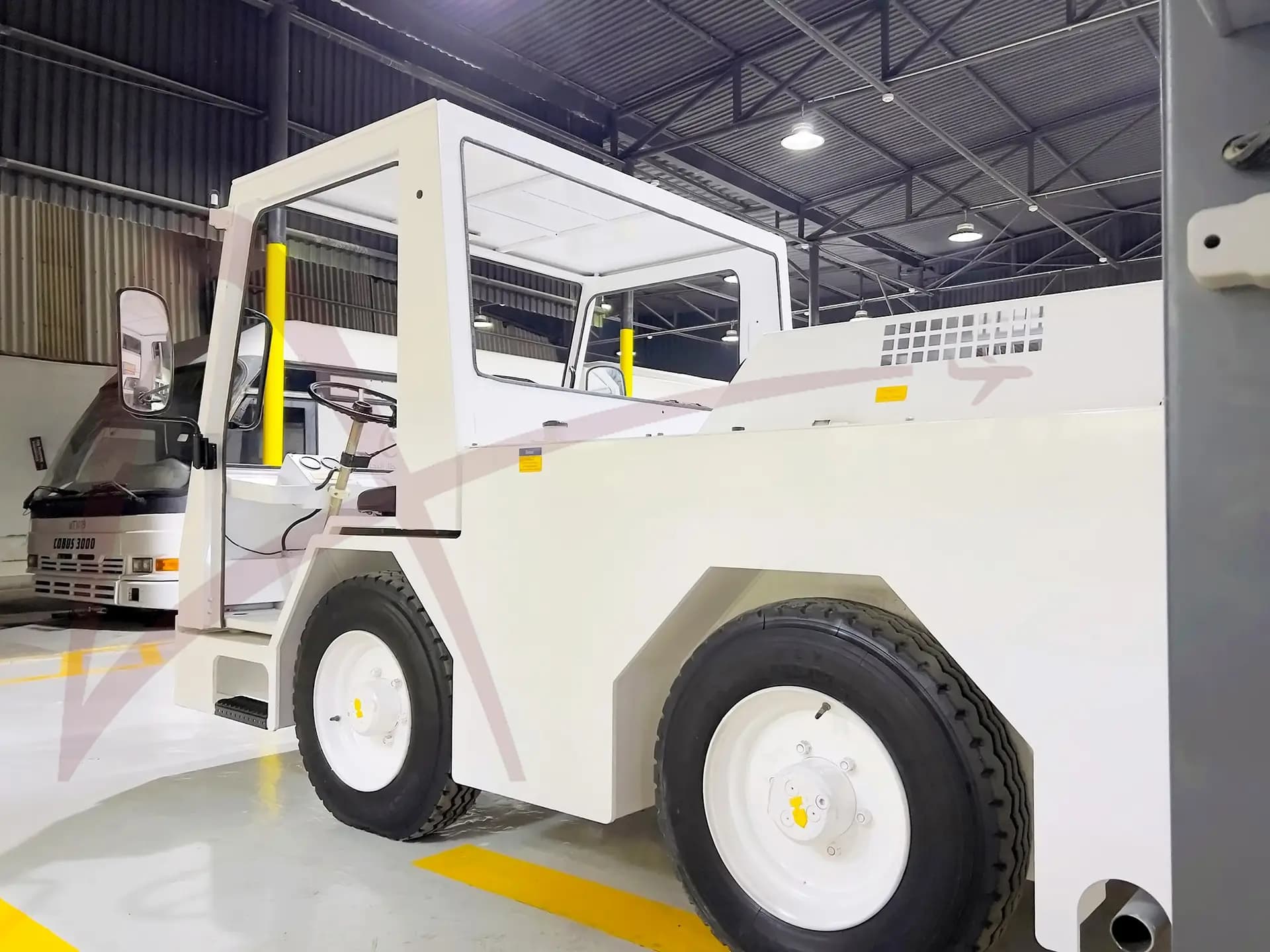

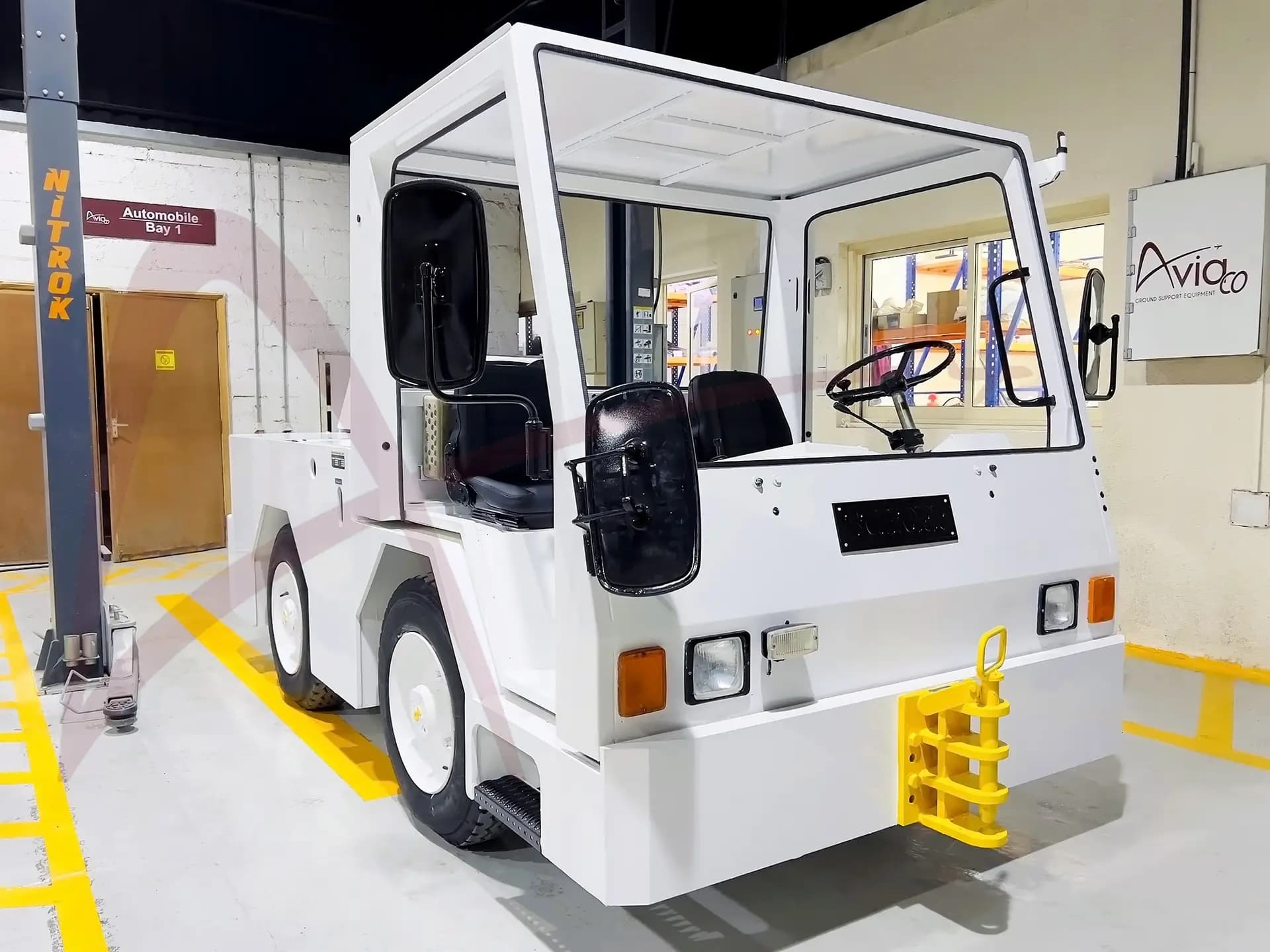

The SCHOPF F 59 is a multi-purpose towing tractor with 4-wheel drive and 2-wheel steering. This tractor consists of a sturdy and rigid frame of welded construction. The front axle is mounted to the frame by semi-elliptic laminated leaf springs and additionally stabilized by two hydraulic shock absorbers. The rear axle is rigidly mounted. Engine, full-power-shift transmission and hydraulic system as well as all other components are placed within the frame, easily accessible for repair and maintenance work. Engine and transmission can be removed as one unit. A 3-stage pin-type tow coupling (standard pin with 1.6″ [40 mm] ) for fitting a tow bar is mounted to each of the massive bumpers front and rear.

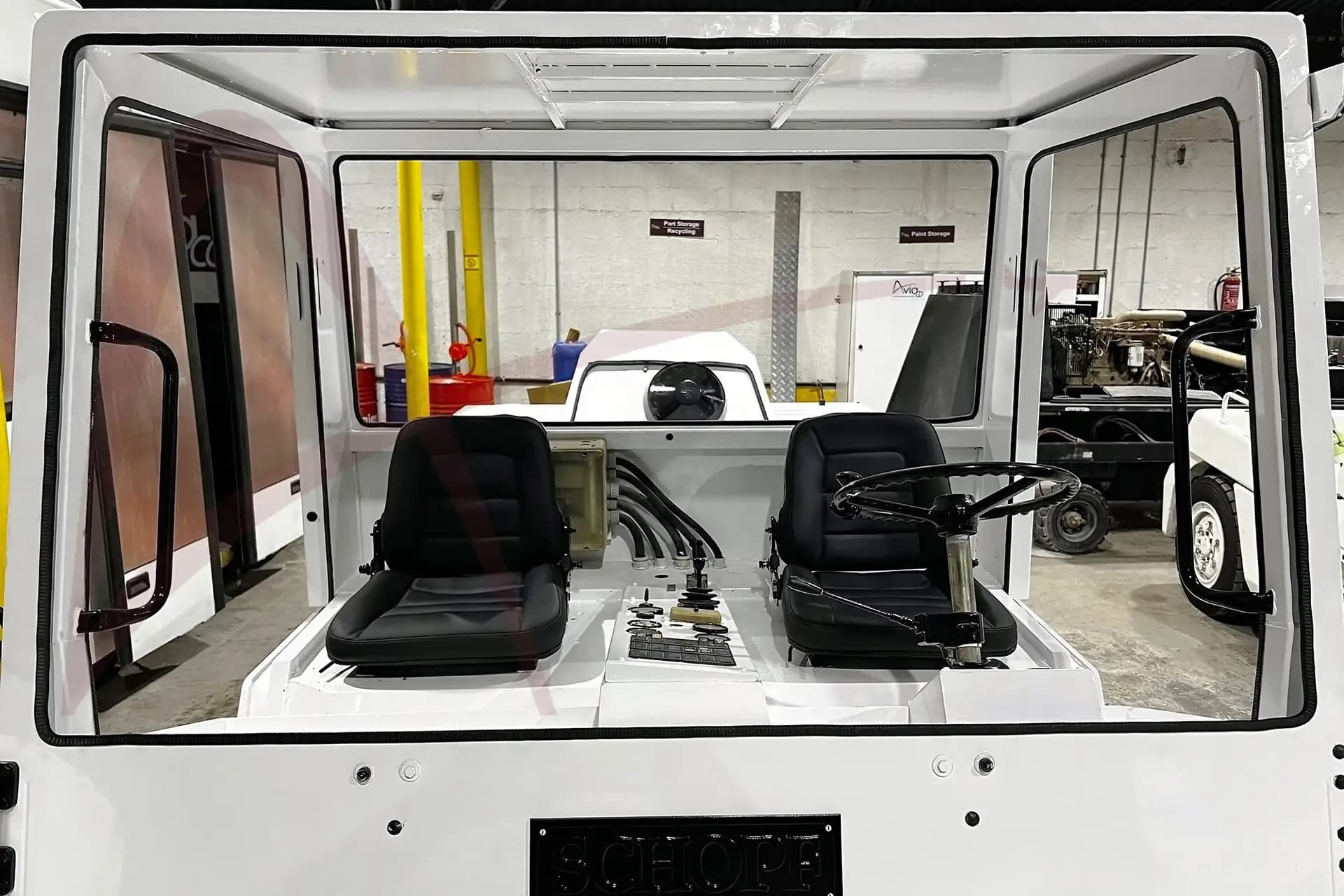

OPERATOR’S CABIN

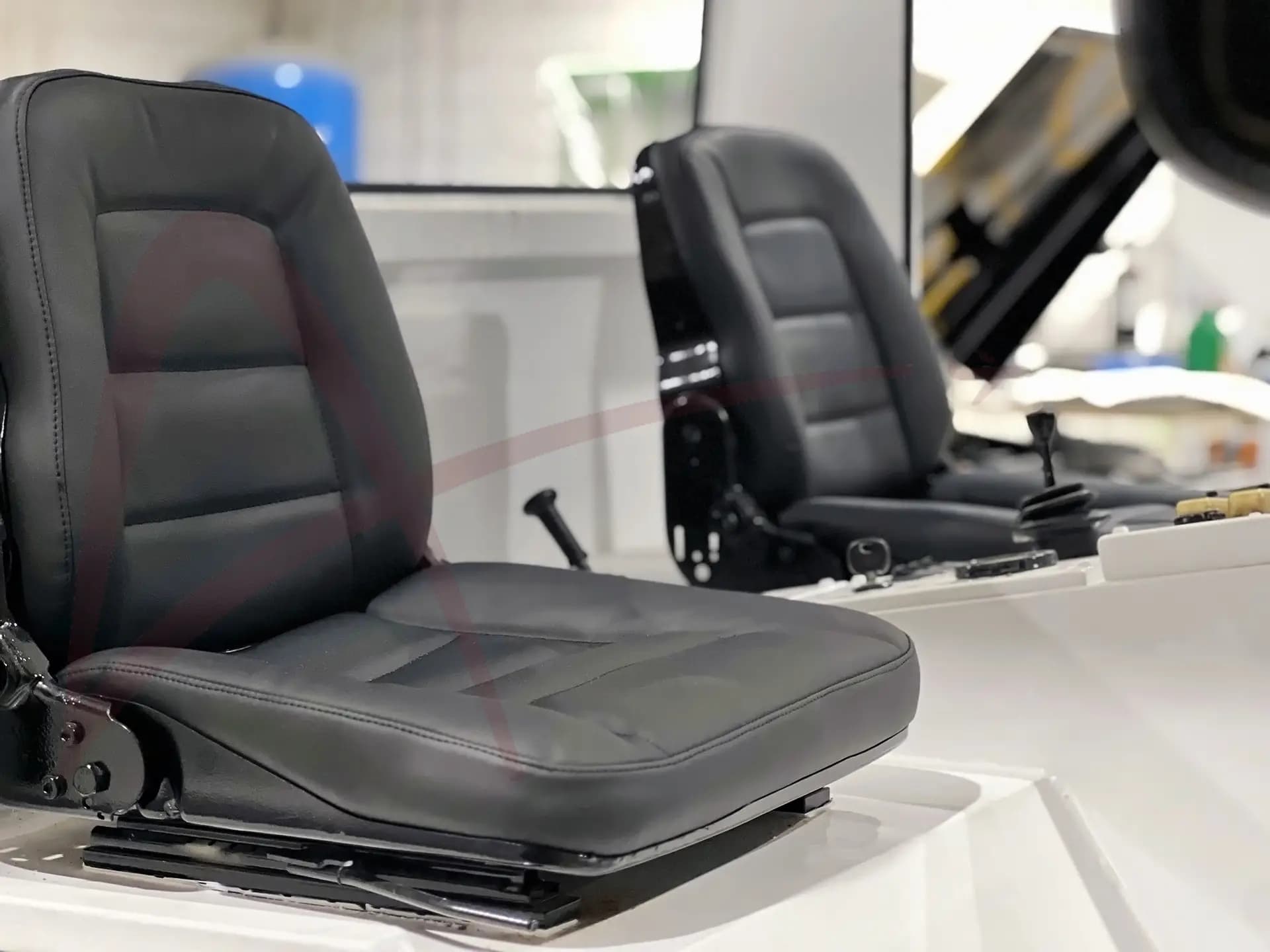

The cabin is of all-steel construction. It is ergonomically designed for safety and comfort of the operator. There are 2 fully adjustable suspension seats for driver and one co-driver.

Available Units

None in stock right now. This model is available on request: add it to your request cart and sales will look for one, or offer a suitable alternative.
