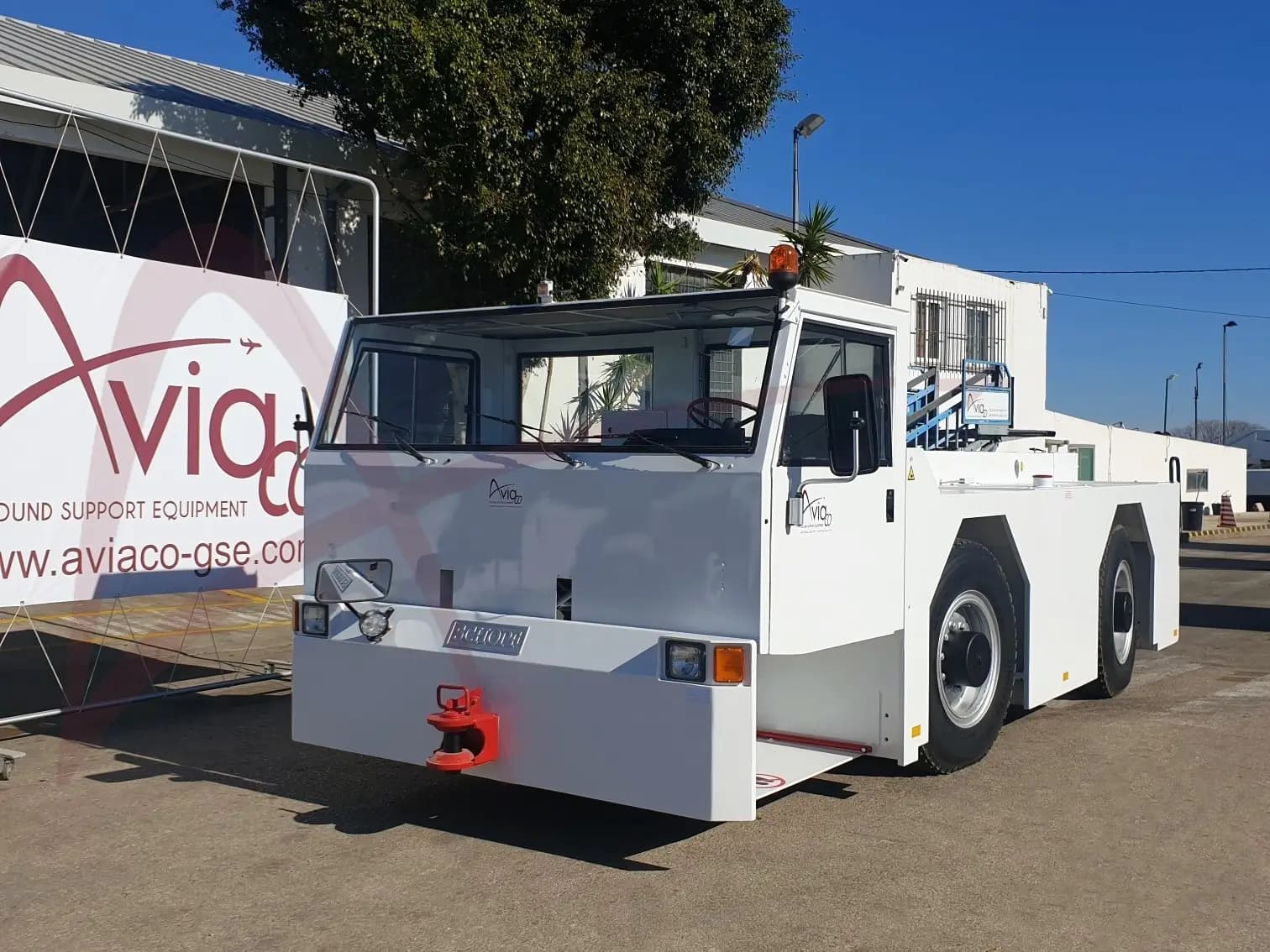

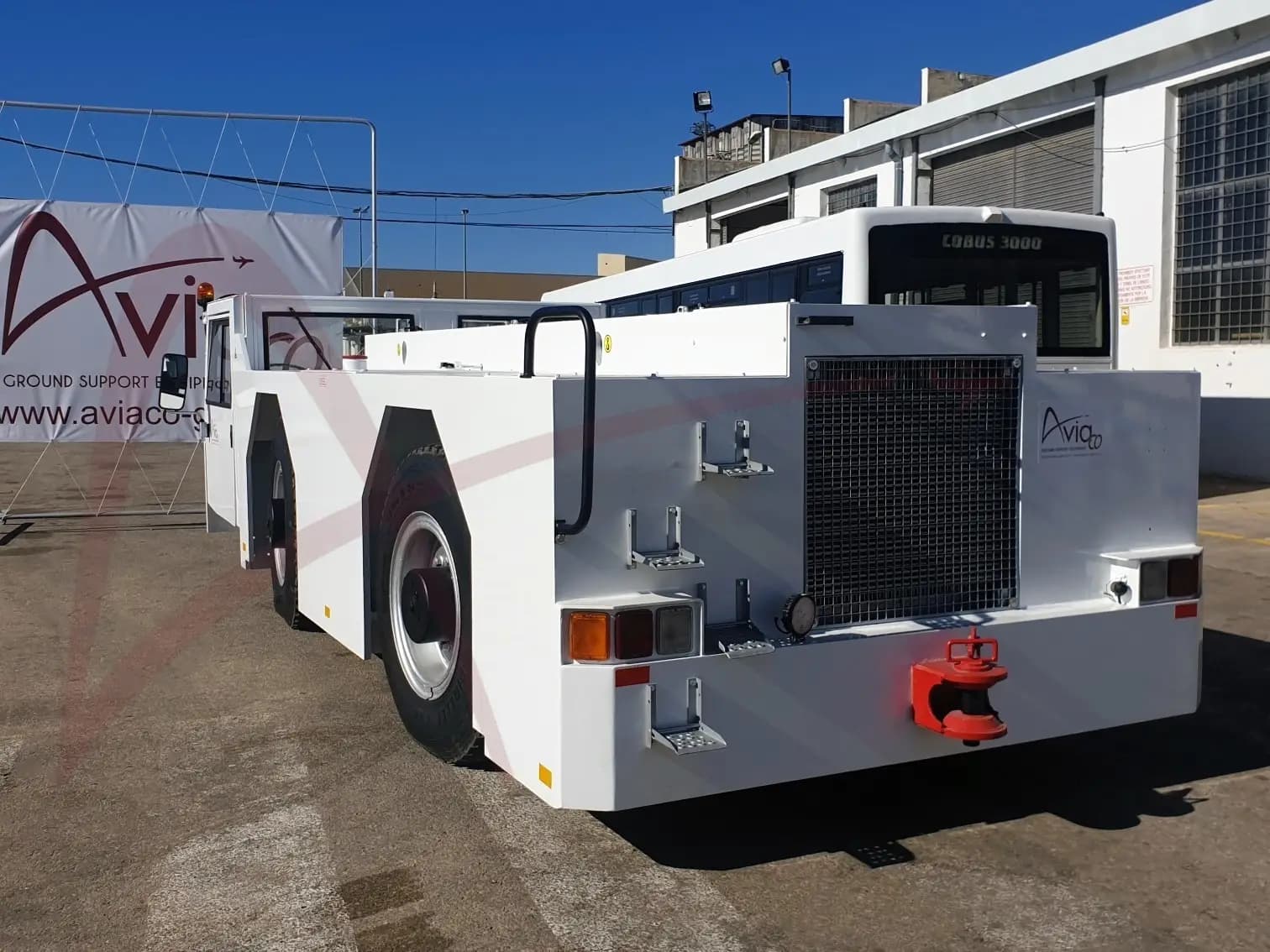

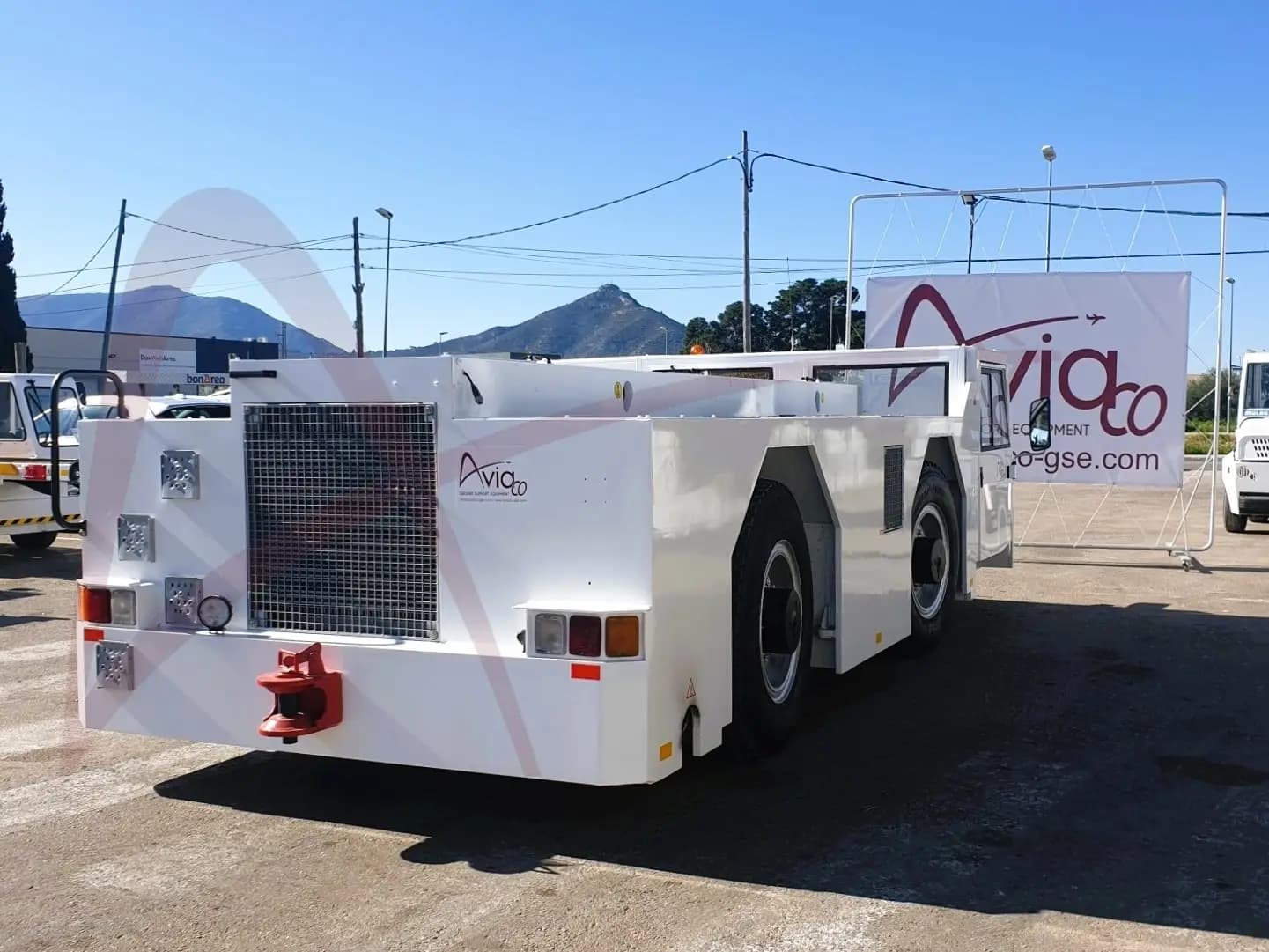

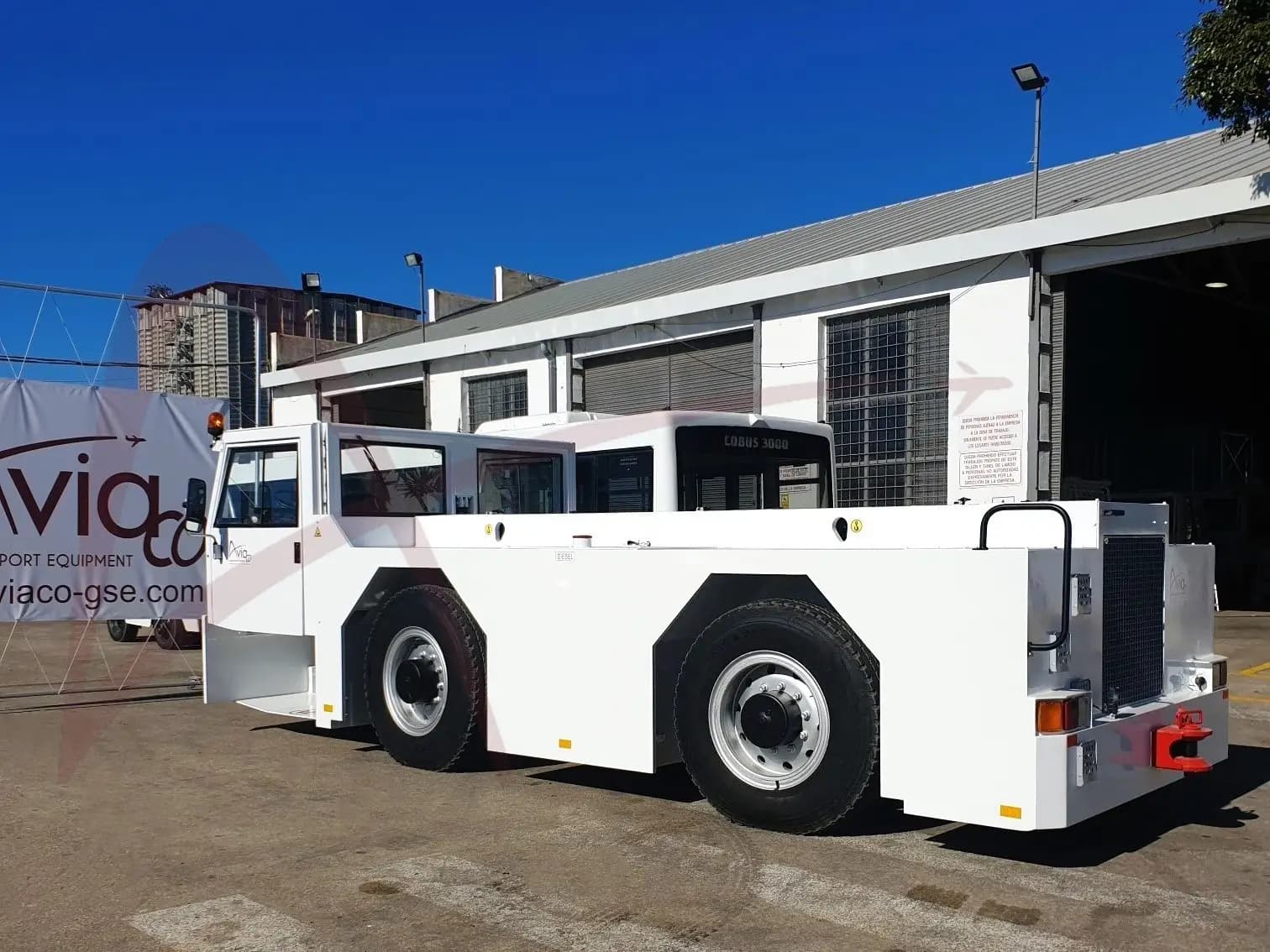

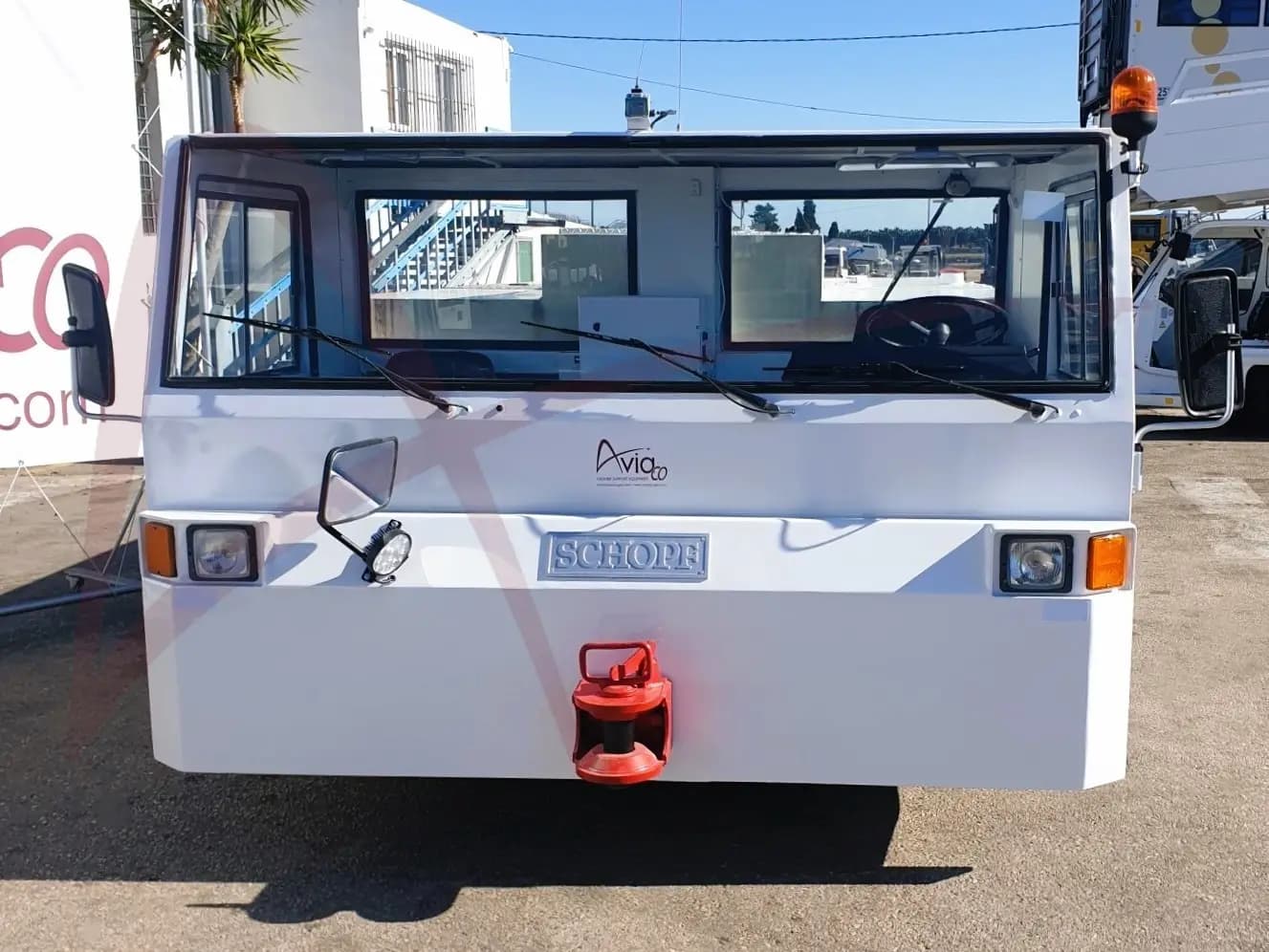

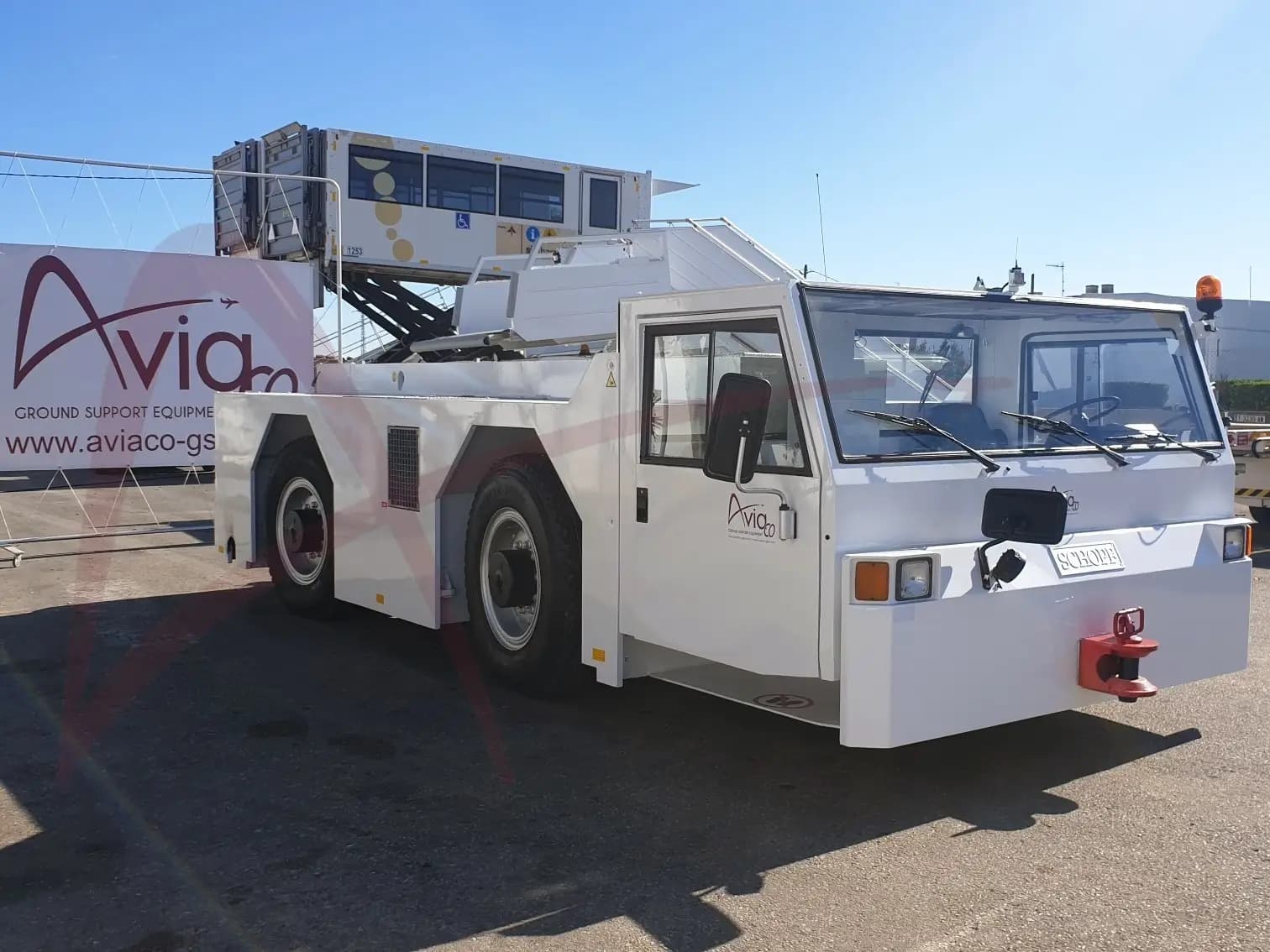

SCHOPF F180
Aircraft Pushback Tractors / TugsBrand :
SchopfParameters :
- Capacity
- Up to 260 MTOW, draw-bar pull 205 kN / 46,086 lbs
- Engine
- Diesel
- Year
- 2000
- Hours
- 20946 hrs.
Specifications
- Capacity
- Up to 260 MTOW, draw-bar pull 205 kN / 46,086 lbs
- Year
- 2000
- Hours
- 20946 hrs.
- Engine
- Diesel
- Length
- 7,150 mm
- Width
- 2,500 mm
- Height
- 1,650 mm
- Weight
- 24,000 kg
Description
Pushback / towing tractor for medium to wide body aircraft
The SCHOPF F 180 is an aircraft towing tractor with 4-wheel drive and 4-wheel steering.
It is available in the weight classes 20,000 / 24,000 / 28,000 kg
- This tractor consists of a sturdy and rigid frame of welded construction. The front axle is mounted to the frame by semi-elliptic laminated leaf springs. The rear axle is rigidly mounted.
- Engine, full-power-shift transmission and hydraulic system as well as all other components are placed within the frame, easily accessible for repair and maintenance work. Engine and transmission can be removed as one unit.
- The F180 tractor can be supplied in a so-called “short” or “long” version. Besides an elevating cabin for driver and co-driver in front (short version), the tractor can be additionally equipped with a full-width platform or a fully functional one-man rear operator’s station (either open stand or closed cab) with small platform.
- The tractor weight is equally distributed on all four wheels.
- Various types of tow couplings for connecting a tow bar can be mounted to each of the
- massive bumpers front and rear. In standard single-stage pin-type tow hitches, pin with 3” [75 mm] Ø, are fitted.
Available Units
1 unit
| Photo | Ref. Number | Year | Hours | Type | Purpose | Stock | Actions |
|---|---|---|---|---|---|---|---|
 | AV10424 | 2000 | 20,946 Hours | Refurbished | Sale / Rent | In Stock | |
| |||||||
- Reference
- AV10424
- Year
- 2000
- Hours
- 20,946 hrs.
- Condition
- Refurbished
- Sale / rent
- Sale / Rent
- Stock
- In Stock
Model FAQ
1 unit is listed, built 2000. Each row in the table has its own reference number, year and hours.
Both: 1 of the 1 units are for sale and 1 can be rented.
1 refurbished. The condition of each unit is in its row.
Yes. Add the rows you want from the units table to your request cart. To ask for any unit instead, "Or request any unit of this model" under the summary puts the model itself in your request, and you set how many you need.
Request a quote for SCHOPF F180
Say how many you need and where. You get a first reply within one business day.
