HUNERT 5.17-01
Aircraft Passenger StairsBrand :
HunertParameters :
- Capacity
- Min. platform height 2400 mm, max. platform height 3550 mm
- Engine
- Non-motorized
- Year
- 2007
- Length
- 6,900 mm
Specifications
- Capacity
- Min. platform height 2400 mm, max. platform height 3550 mm
- Year
- 2007
- Engine
- Non-motorized
- Length
- 6,900 mm
- Width
- 2,340 mm
- Height
- 3,900 mm
- Weight
- 1,760 kg
Description

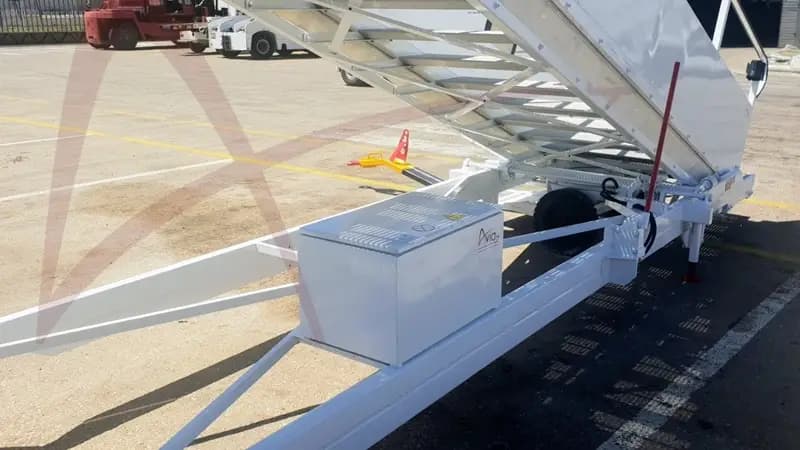

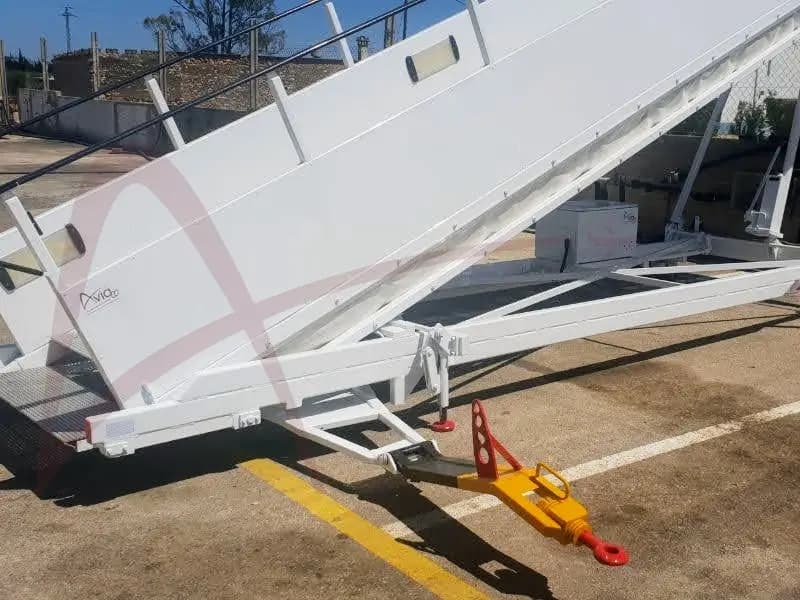

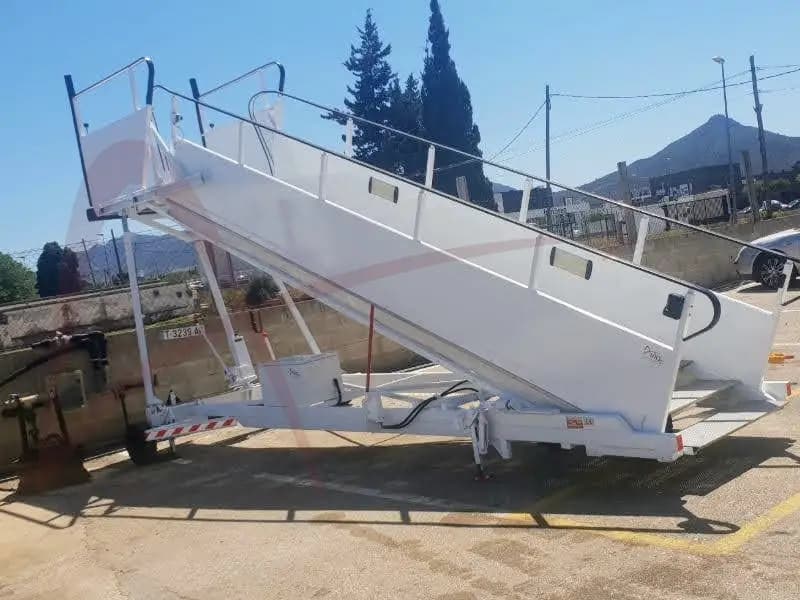

Towable passenger boarding steps for narrow body aircraft
Parallelogram-stair with adjustable platform height-range. Available either with Ackermannsteering underneath the platform or with centre pivotal steering at the lower end.
- Type: 5.17
- Payload : 320 kg/m²

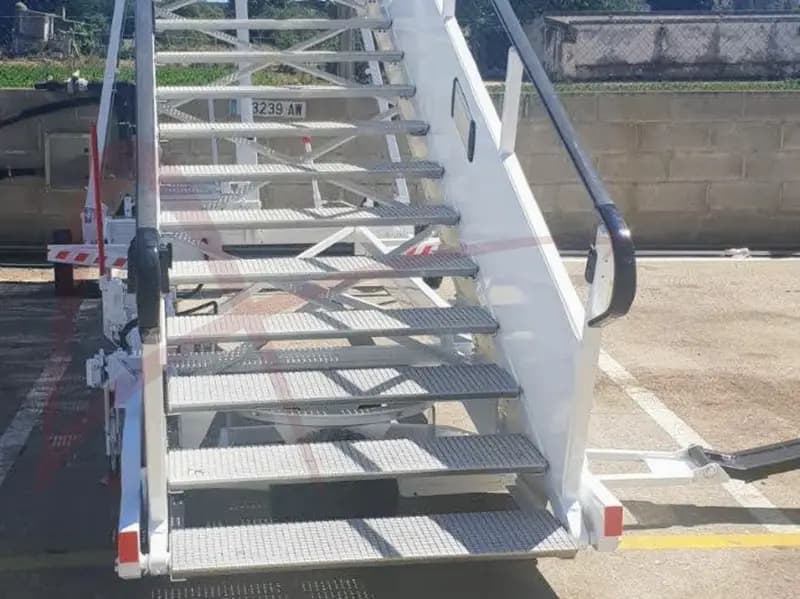

- Number of steps: 17
- Platform : 1 appr. 1250 x ca. 1200 mm
- Stair inclination : 24° – 40°

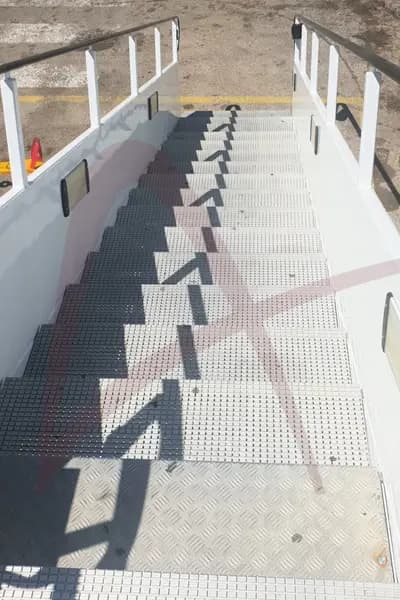

- Walk area lining : Alusingen – Step profile
- Release pressure for sliding rail : 200 N
- Height range : 2400 – 3550 mm
- Length max. 24° : appr. 7550mm
- Length max. 40° : appr. 6900 mm
- Height max. 24° : appr. 5000 mm
- Height max. 40° : appr. 6160 mm
- Width max. : appr. 2340 mm
- Turning circle : appr. 4900 mm
- Deadweight : 1760 kg
- Max. permitted windspeed : 40 KN ( 20,57 m / sec. )
- Max. permitted towing speed : 25 km / h
- Max. permitted ground inclination : ± 3°
- Temperature range : + 50°C bis -20°C
Available Units
1 unit
| Photo | Ref. Number | Year | Hours | Type | Purpose | Stock | Actions |
|---|---|---|---|---|---|---|---|
 | AV11002 | 2007 | — | Refurbished | Sale / Rent | In Stock | |
| |||||||
- Reference
- AV11002
- Year
- 2007
- Condition
- Refurbished
- Sale / rent
- Sale / Rent
- Stock
- In Stock
Model FAQ
1 unit is listed, built 2007. Each row in the table has its own reference number, year and hours.
Both: 1 of the 1 units are for sale and 1 can be rented.
1 refurbished. The condition of each unit is in its row.
Yes. Add the rows you want from the units table to your request cart. To ask for any unit instead, "Or request any unit of this model" under the summary puts the model itself in your request, and you set how many you need.
