SPS CT-03
Aircraft Pallet DolliesBrand :
SPSParameters :
- Capacity
- 6800 kg
- Engine
- Non-motorized
- Year
- 2014
- Length
- 4,566 mm
Specifications
- Capacity
- 6800 kg
- Year
- 2014
- Engine
- Non-motorized
- Length
- 4,566 mm
- Width
- 3,415 mm
- Height
- 510 mm
- Weight
- 1,220 kg
Description

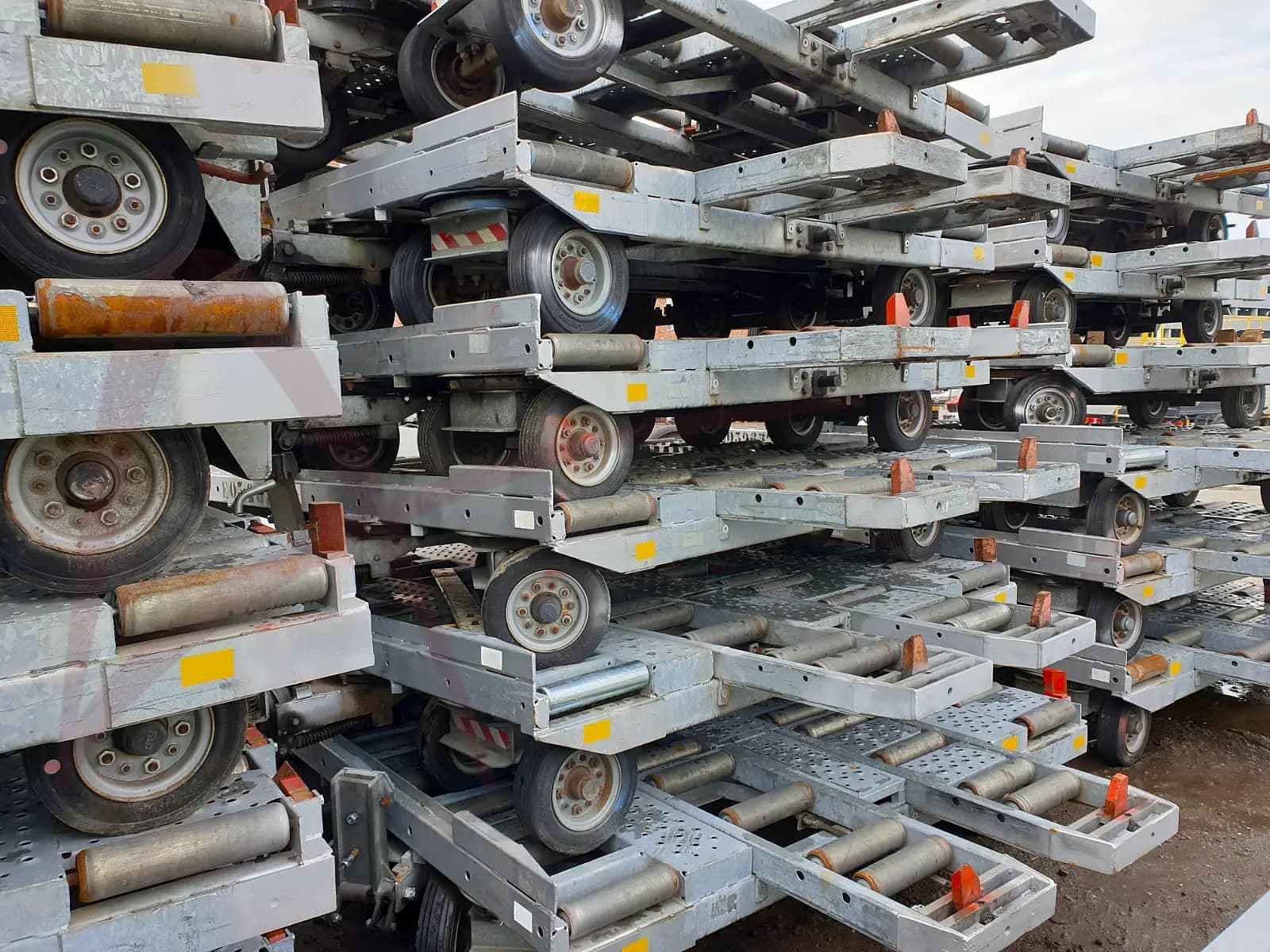

SPS CT-03 Pallet Dolly
The SPS CT-03 is a durable 10 ft pallet dolly designed for efficient handling of ULD containers and pallets in airport cargo operations. With a payload capacity of up to 6,800 kg, it supports a wide range of standard ULD formats, ensuring versatile use across ground handling workflows.
Built with a robust, hot-dip galvanized frame and roller deck, the CT-03 provides smooth cargo transfer and reliable performance in demanding ramp conditions. Its compact design and low tare weight (approximately 1,220 kg) enhance maneuverability and towing efficiency.
Suitable for: LD1, LD3, LD4, LD6, LD8, LD9, LD11, LD29, MH1, PKC, FQA, PBJ, PAG, PMC
Specifications
- Maximum length: 4,566 mm
- Maximum width: 3,415 mm
- Tare weight: 1,220 kg
- Maximum load: 6,800 kg
- Finish: Hot-dip galvanized
- Turntable deck: No
- Rollers: Ø89 mm cargo rollers, bolted
- Tow-bar length: 1,555 mm
- Tow-eye diameter: Ø40 mm
- Parking brake: On front wheels, activated when drawbar is upright
- Steering: Ackermann, 2-wheel steering
- Tyres: 8 wheels (3.00 D / 15 x 4.5-8)
- Maximum speed (unloaded): 25 km/h
- Loading type: Narrow edge loading
- Coupling: S-P-S E-Hitch (optional Ringfeder / Rockinger)
Simple, reliable, and low-maintenance, the SPS CT-03 is a practical solution for safe and efficient air cargo transportation.
