TLD GPU-4120-T-CUP-28
Aircraft Ground Power Units (GPU)Brand :
TLDParameters :
- Capacity
- GPU, 120 kVA+28V
- Engine
- Diesel
- Length
- 3,962 mm
- Width
- 1,524 mm
Specifications
- Capacity
- GPU, 120 kVA+28V
- Engine
- Diesel
- Length
- 3,962 mm
- Width
- 1,524 mm
- Height
- 1,727 mm
- Weight
- 2,744 kg
Description
GPU 120kva+28V
ELECTRONIC CONTROL WITH DIGITAL DISPLAY

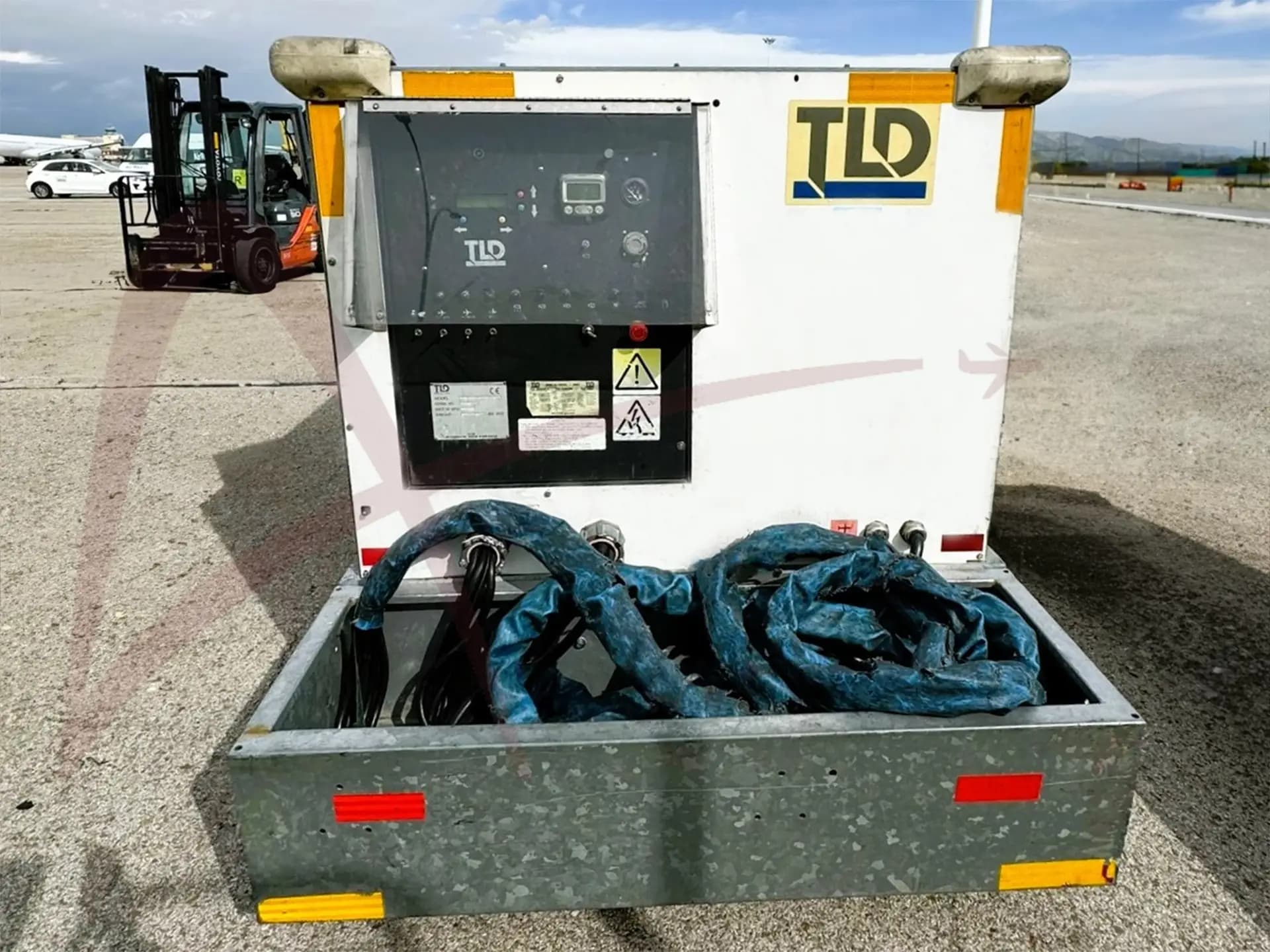

The GPU-4000 Series 400 Hz Ground Power Unit features a brushless revolving field generator, rubber torsion axle-mounted chassis of rugged galvanized steel construction with fifth wheel steering and powder-coated sheet metal panels. The unit can meet U.S. and EURO latest emission standards.
GENERATOR SPECIFICATIONS
400 Hz 115/200 volts nominal, +/- 15% adjustable, 3 phases, 4 wire wye-connected, grounded neutral, revolving field, brushless, self-cooling, single bearing, brushless rotating rectifier assembly, directly connected to the engine.
CHASSIS CHARACTERISTICS
– Easy access to all components
– Control panel – rear mounted
– Cable storage tray
– Fuel tank – 77 gallons for over 8 hrs of running time
– Mechanical brake – towbar operated
– Fifth wheel steering
