TLD CH BM 5,9

TLD CH BM 5.9 Catering Truck

Efficient, reliable, and versatile catering solution for modern airport operations

The TLD CH BM 5.9 is a high-performance, full-cab aircraft catering truck engineered to support demanding airport operations with maximum efficiency, safety, and operator comfort. Built on a durable commercial truck chassis and equipped with a fully enclosed, climate-protected cab, the CH BM 5.9 ensures fast, hygienic, and dependable catering service in all weather conditions.

With an adjustable service height ranging from 2,700 mm to 5,900 mm, this model is ideally suited for servicing most regional jets, narrow-body aircraft, and many wide-body aircraft, making it a highly versatile asset for airlines and ground-handling providers.

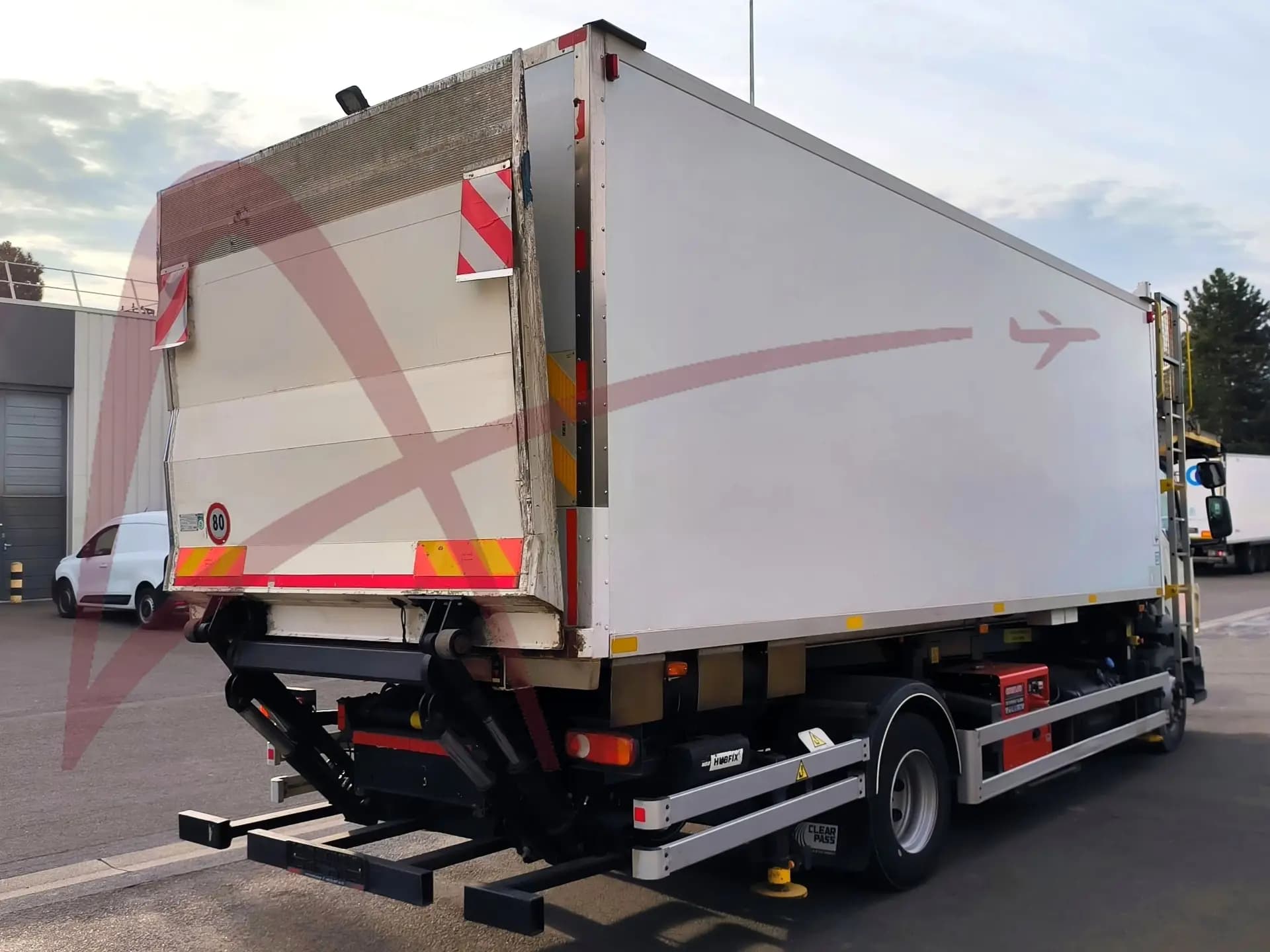

The spacious catering module provides a 3,000 kg load capacity, while the integrated 1,500 kg rear lifting platform ensures safe and efficient transfer of catering carts, containers, and equipment from ground level. This significantly optimizes turnaround times and operational productivity.

Powered by a robust diesel engine and engineered for stability, safety, and long-term reliability, the CH BM 5.9 offers excellent maneuverability, a stable lifting platform, and durable construction with a total vehicle weight of 12,430 kg.

Aviaco supplies all CH BM 5.9 units fully refurbished, ensuring like-new mechanical condition, operational safety, and a long service life for an exceptional return on investment.

Key Technical Enhancements

Driver’s Cab

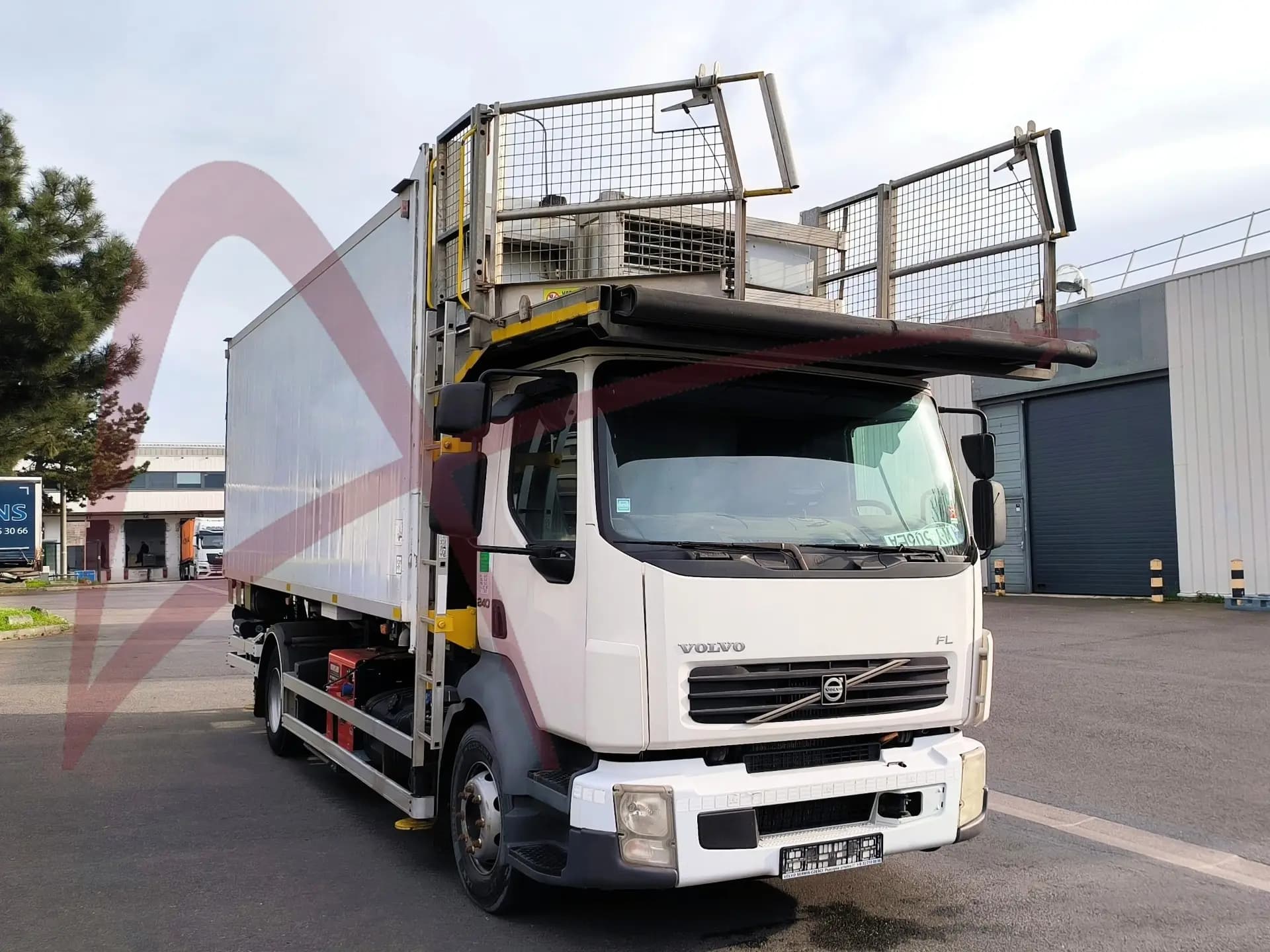

• Full driver’s cab based on the original truck manufacturer’s cabin design
• Excellent visibility, weather protection, and ergonomic operator comfort

Lifting Equipment

• Single-scissors lifting system
• Two single-acting cylinders
• Integrated flanged safety valve for secure elevated operations

Stabilization System

• Four-point jacking system with safety valves
• Stabilizers integrated into the unit footprint
• Wind resistance up to 90 km/h when platform is raised

Hydraulic System

• Gear-type hydraulic pump mounted to truck PTO
• 70-liter hydraulic tank with return filter
• Solenoid-operated hydraulic valves in a fully accessible service cabinet
• Emergency manual pump for cabin lift and stabilizers in case of engine or pump failure

Electrical System

• Truck’s 24 VDC electrical generation
• Minimum battery capacity: 110 Ah
• Alternator output: 55 A
• Major electrical components housed in a waterproof cabinet
• External components and manipulators are weather-sealed and waterproof

Key Features

• Service height range: 2.70 m – 5.90 m
• Suitable for regional jets, narrow-body aircraft, and most wide-bodies
• 3,000 kg load capacity for high-volume catering logistics
• 1,500 kg rear lifting platform for safe and efficient ground-level loading
• Full-cab configuration for maximum comfort and all-weather protection
• Stable single-scissor, dual-cylinder lifting system
• Heavy-duty build with 12,430 kg empty weight and 9,000 mm length
• Advanced stabilizer system for safe operation in high winds
• Hydraulic and electrical systems optimized for reliability and easy maintenance
• Fully refurbished by Aviaco for maximum operational readiness and value
