SPS CT-03

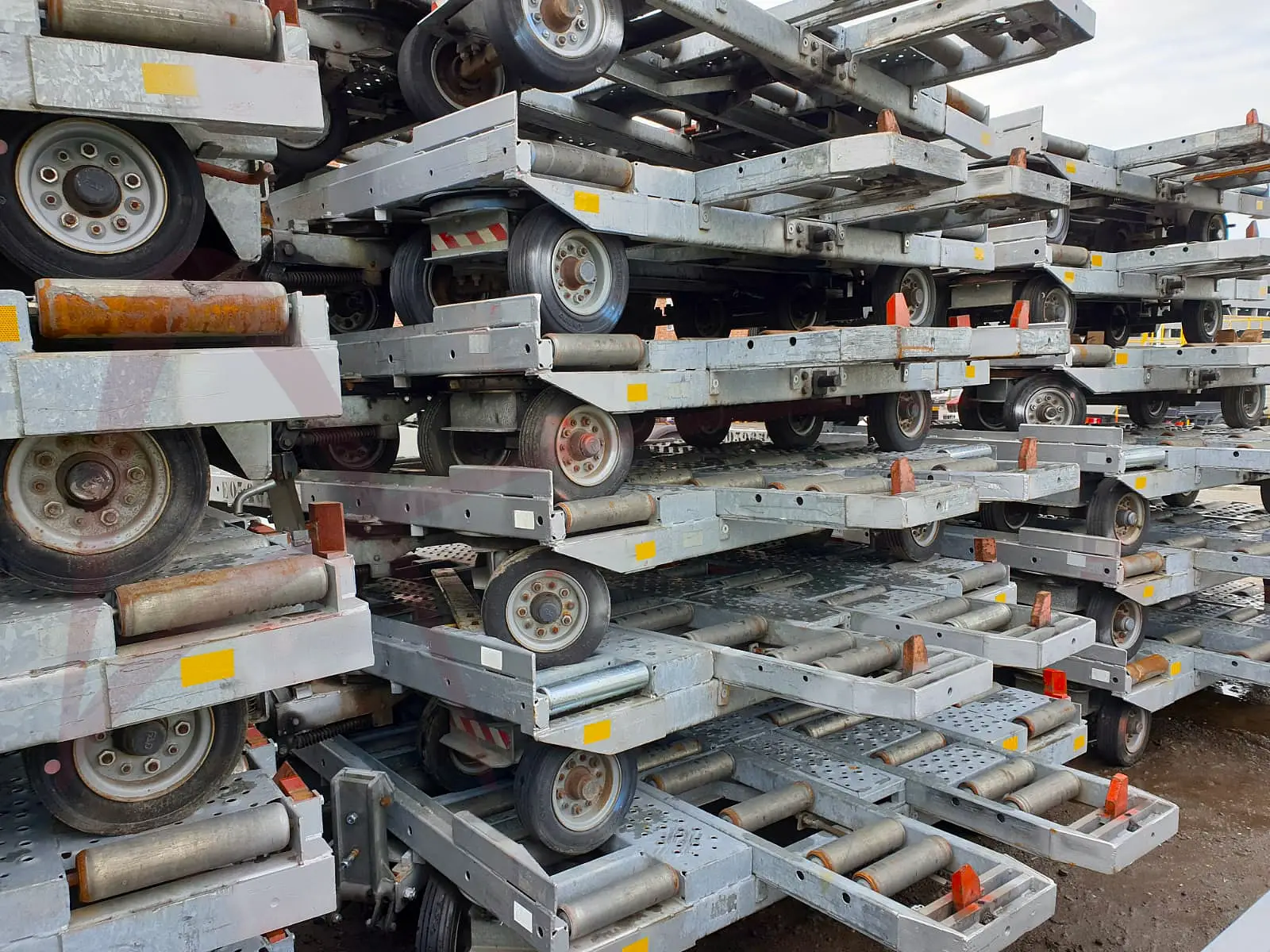

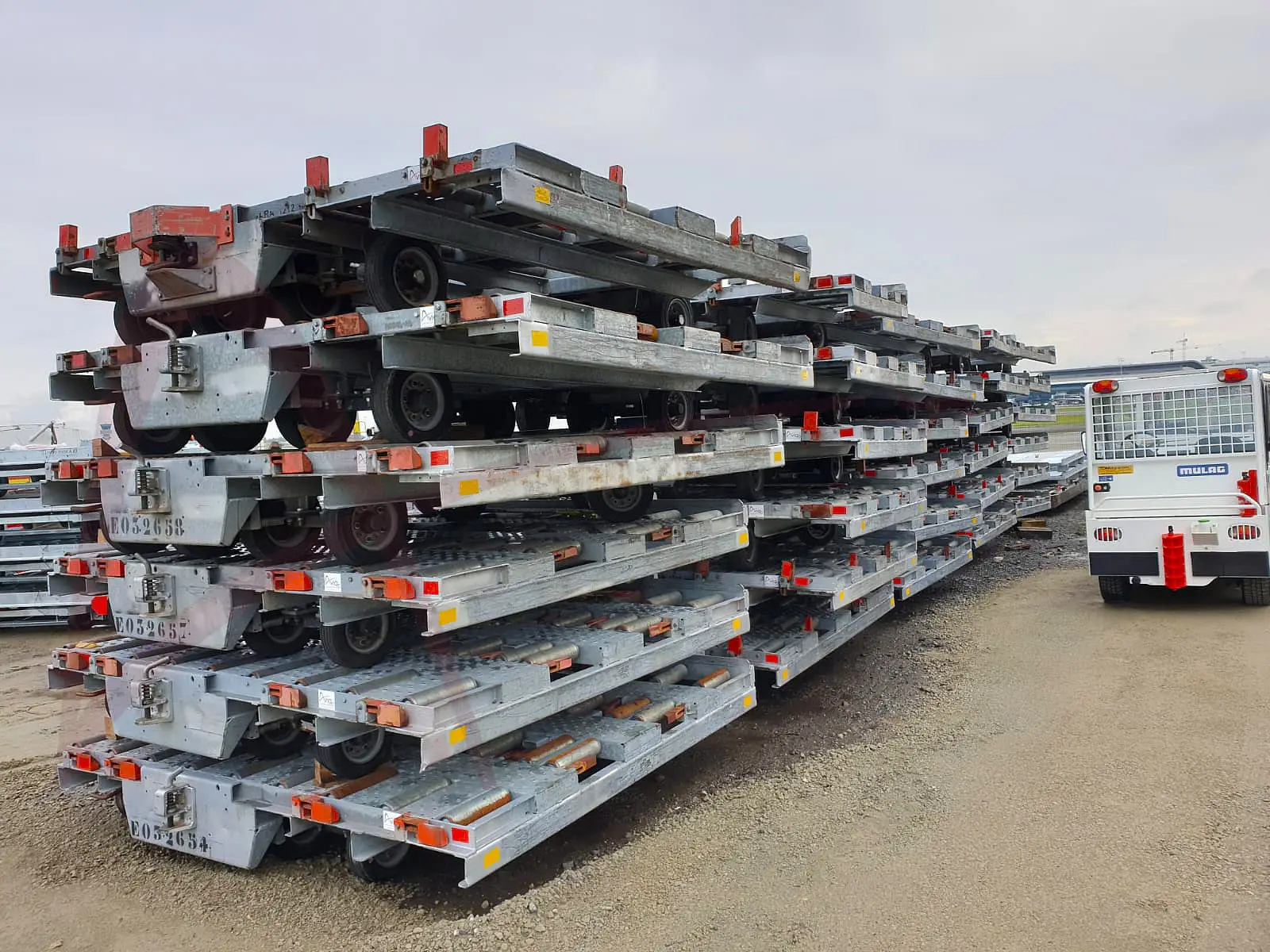

SPS CT-03 Pallet Dolly

The SPS CT-03 is a durable 10 ft pallet dolly designed for efficient handling of ULD containers and pallets in airport cargo operations. With a payload capacity of up to 6,800 kg, it supports a wide range of standard ULD formats, ensuring versatile use across ground handling workflows.

Built with a robust, hot-dip galvanized frame and roller deck, the CT-03 provides smooth cargo transfer and reliable performance in demanding ramp conditions. Its compact design and low tare weight (approximately 1,220 kg) enhance maneuverability and towing efficiency.

Suitable for: LD1, LD3, LD4, LD6, LD8, LD9, LD11, LD29, MH1, PKC, FQA, PBJ, PAG, PMC

Specifications

• Maximum length: 4,566 mm
• Maximum width: 3,415 mm
• Tare weight: 1,220 kg
• Maximum load: 6,800 kg
• Finish: Hot-dip galvanized
• Turntable deck: No
• Rollers: Ø89 mm cargo rollers, bolted
• Tow-bar length: 1,555 mm
• Tow-eye diameter: Ø40 mm
• Parking brake: On front wheels, activated when drawbar is upright
• Steering: Ackermann, 2-wheel steering
• Tyres: 8 wheels (3.00 D / 15 x 4.5-8)
• Maximum speed (unloaded): 25 km/h
• Loading type: Narrow edge loading
• Coupling: S-P-S E-Hitch (optional Ringfeder / Rockinger)

Simple, reliable, and low-maintenance, the SPS CT-03 is a practical solution for safe and efficient air cargo transportation.
