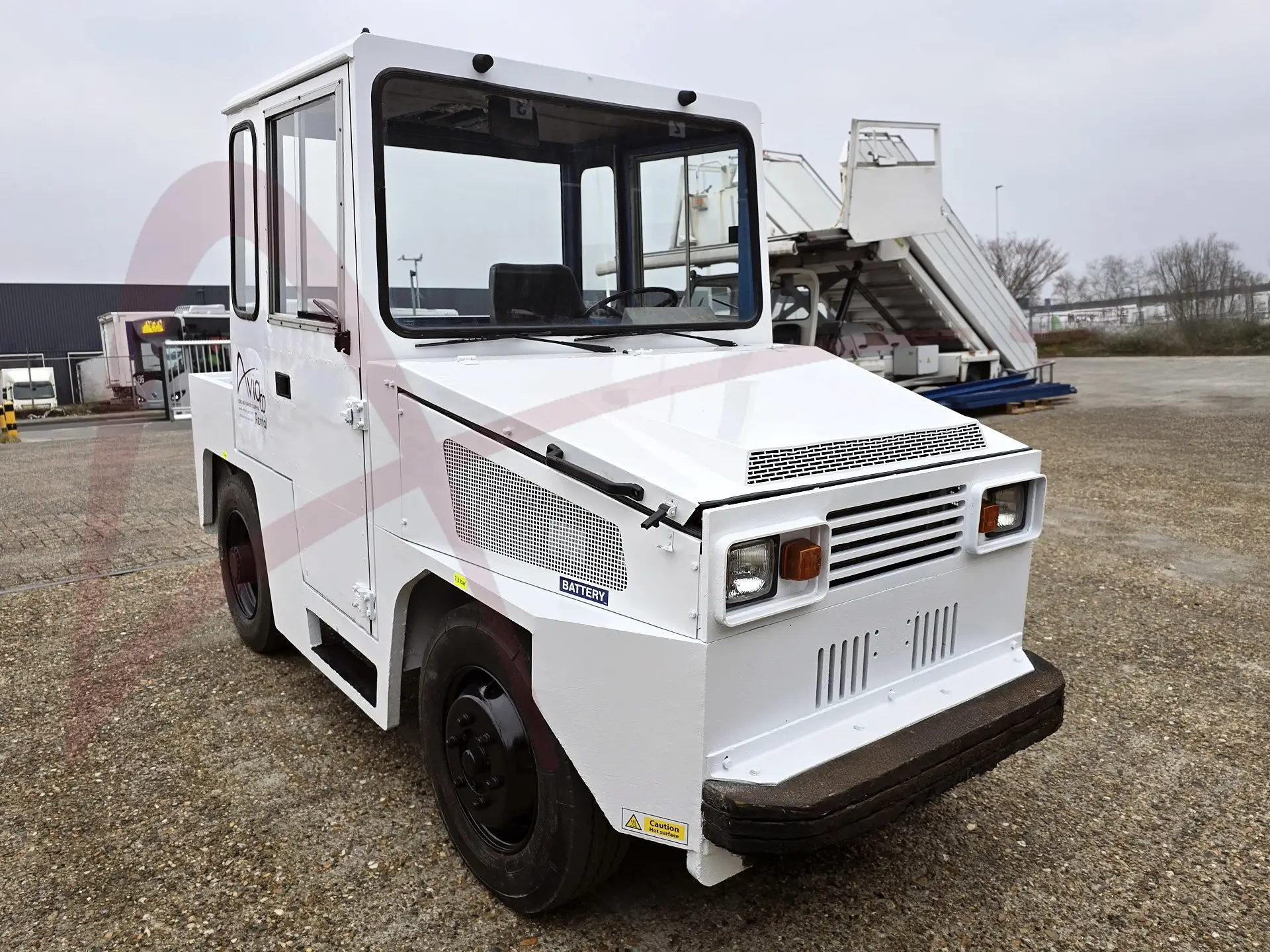

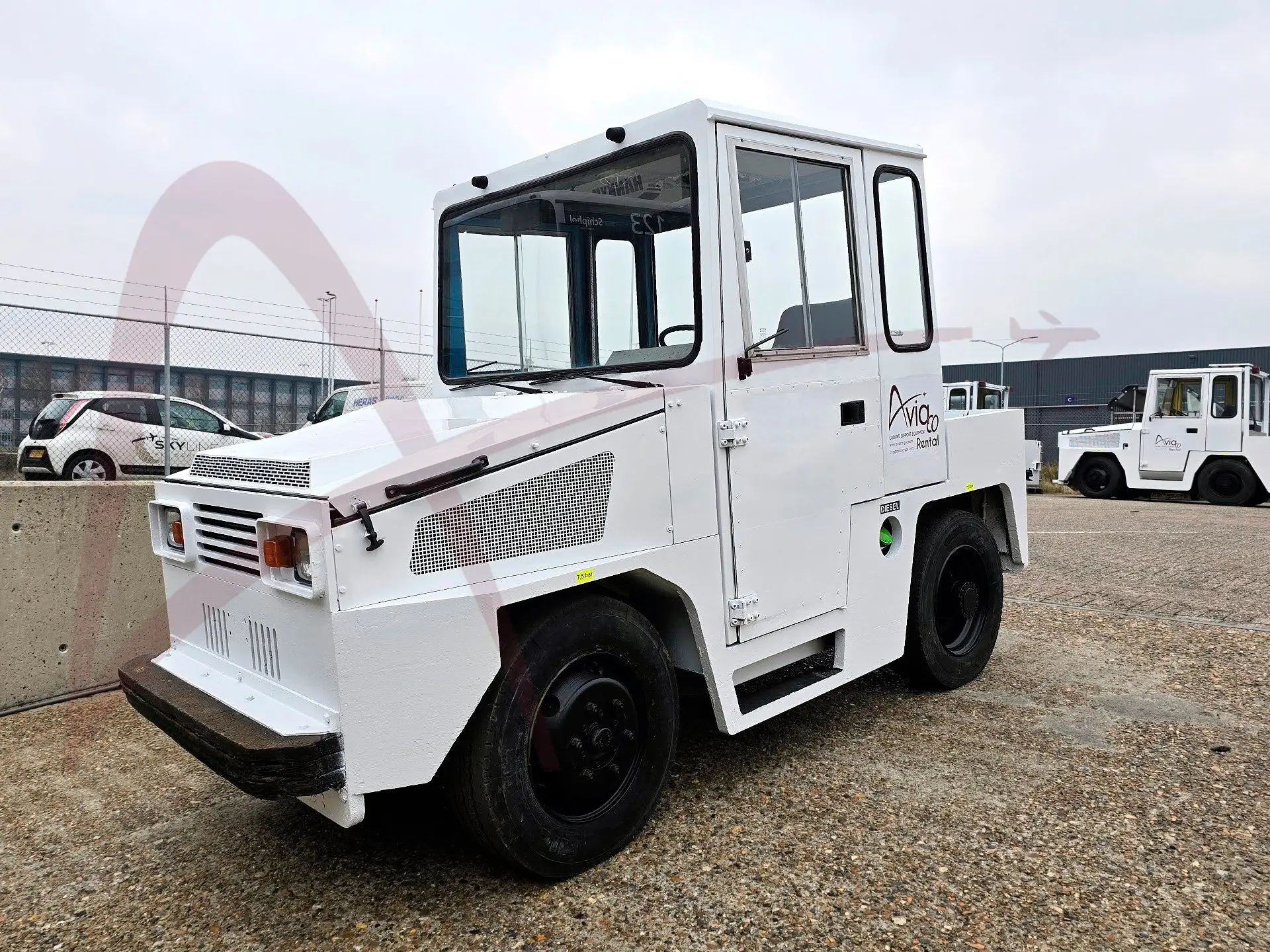

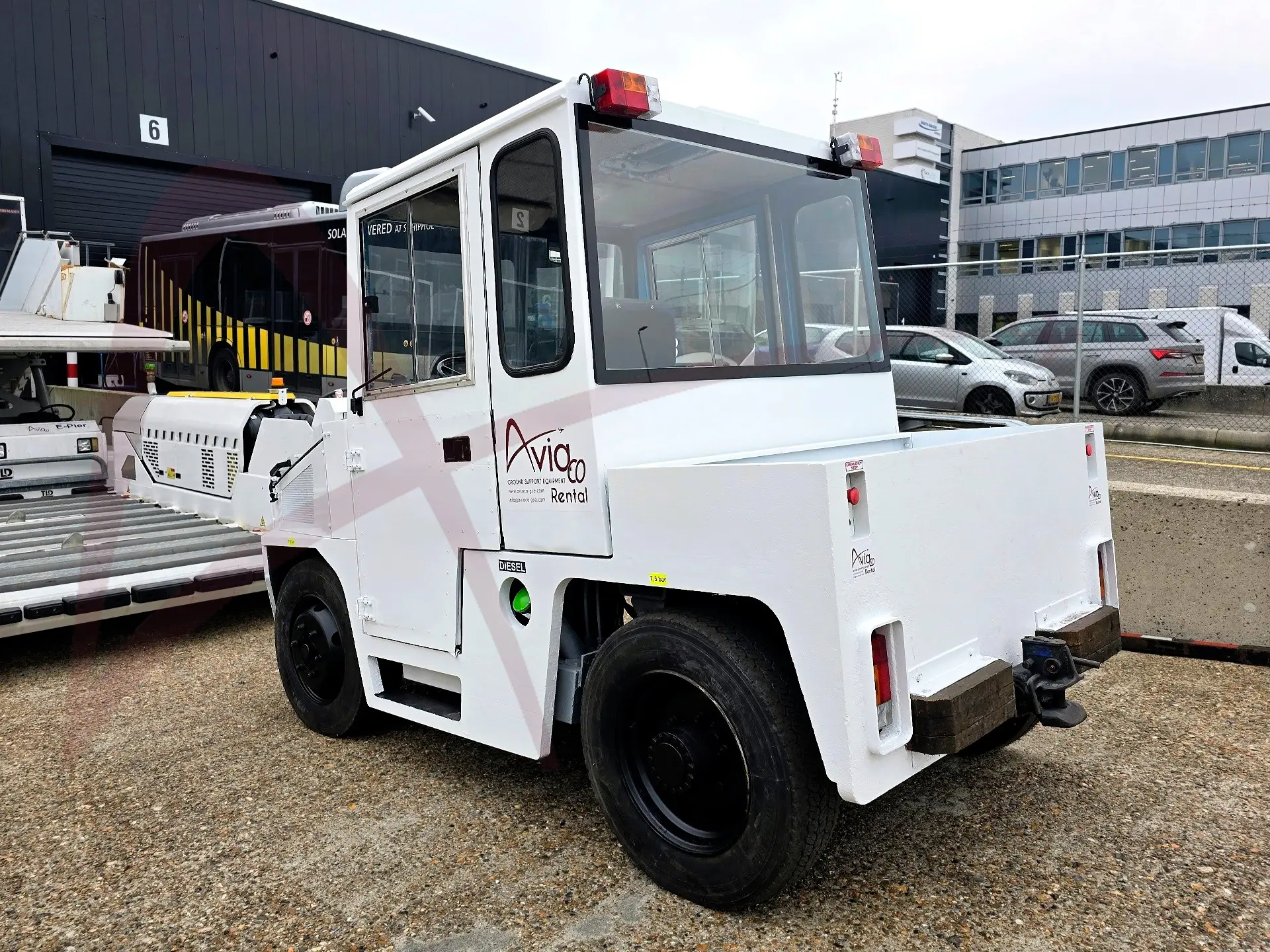

ROFAN ZD80

Reference Number:
AV10705

Need assistance?

Parameters

Brand :

Capacity
up to 60t MTOW
Length:
3.400 mm
Year
2000
Width:
1.650 mm
Hours
40218 hrs.
Height:
2.150 mm
Engine
diesel
Weight:
7.000 kg
Capacity
up to 60t MTOW
Year
2000
Hours
40218 hrs.
Engine
diesel
Length:
3.400 mm
Width:
1.650 mm
Height:
2.150 mm
Weight:
7.000 kg

Description

Diesel tow tractor

The Rofan ZD-80 “FreightKing” is a powerful tow tractor, especially designed for long distance cargo handling and aircraft push back (aircraft up to 50000 kg).
Driven by environmental friendly Deutz diesel engine in combination with the fully automatic, hydrostatic transmission it offers up to 30.000N drawbar pull.
The basic model is equipped with heavy duty front and rear axle, power assisted disc brakes (front: double caliper), ergonomically designed Rofan ZD-cabin combining function, visibility and a comfort at the highest possible levels.

  • Weight: 60.000 kg
  • Drawbar pull: 30.000 N
  • Towing capacity: 60t
  • Diesel engine: Deutz BF4M1012E, 4-stroke industrial diesel engine with supercharger, 66kw/2500 rpm, 300Nm*1500 rpm
  • Maximum speed: 25km/h
